PCSPCTFCL100056
AccuSine+ current transformer - 1000/5 - Round Split Core - diam: 152.4mm

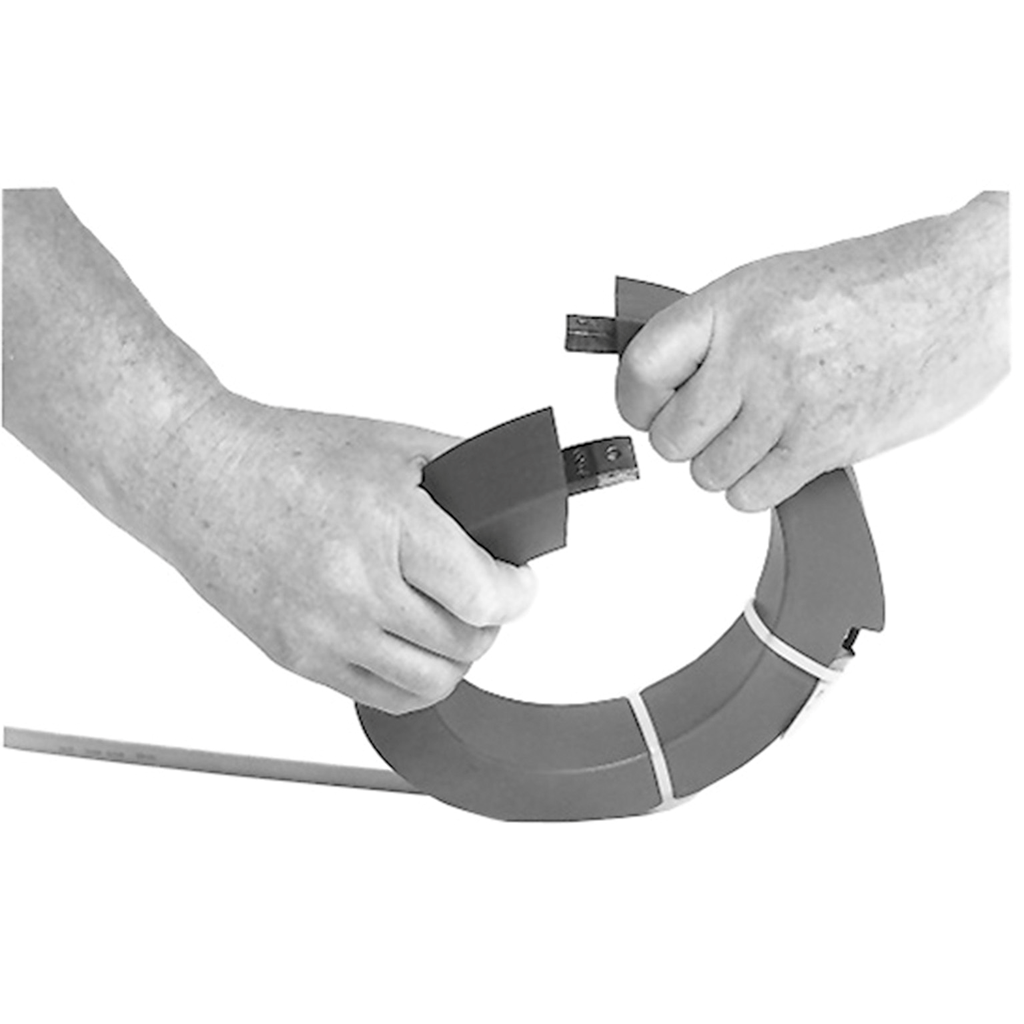

This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1000A and a secondary rating of 5A. The inner diameter of this coil is 152.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50...400 Hz |
|---|---|
| [Ue] Rated Operational Voltage | < 720 V AC 50...400 Hz |
| Current Transformer Ratio | 1000/5 |
| Measurement Accuracy | 1 % |
| Electrical Connection | flying lead 3.65 m720 V |
| Input Impedance | 0.2 Ohm |
| Line Rated Current | 1000 A |
| Continuous Thermal Current Rating Factor |
|
| [Uimp] Rated Impulse Withstand Voltage | 10 kV (50 µs) |
| Diameter |
|
| Net Weight | 1.9 kg |
| Depth | outside : 38.1 mm |
| Accuracy Class | class 1 |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -45-55 °C |
| Standards | IEC 60044-1 |
| Weight | 1.9 kg |
| Secondary Current | 5 A |
| Range Compatibility |
|
| Accessory / Separate Part Category | measurement accessory |
| Current Transformer Type | split core |
| Product Or Component Type | current transformer |
| Shape | round |
| Range | AccuSine |
| Eu Rohs Directive | Under investigation |
