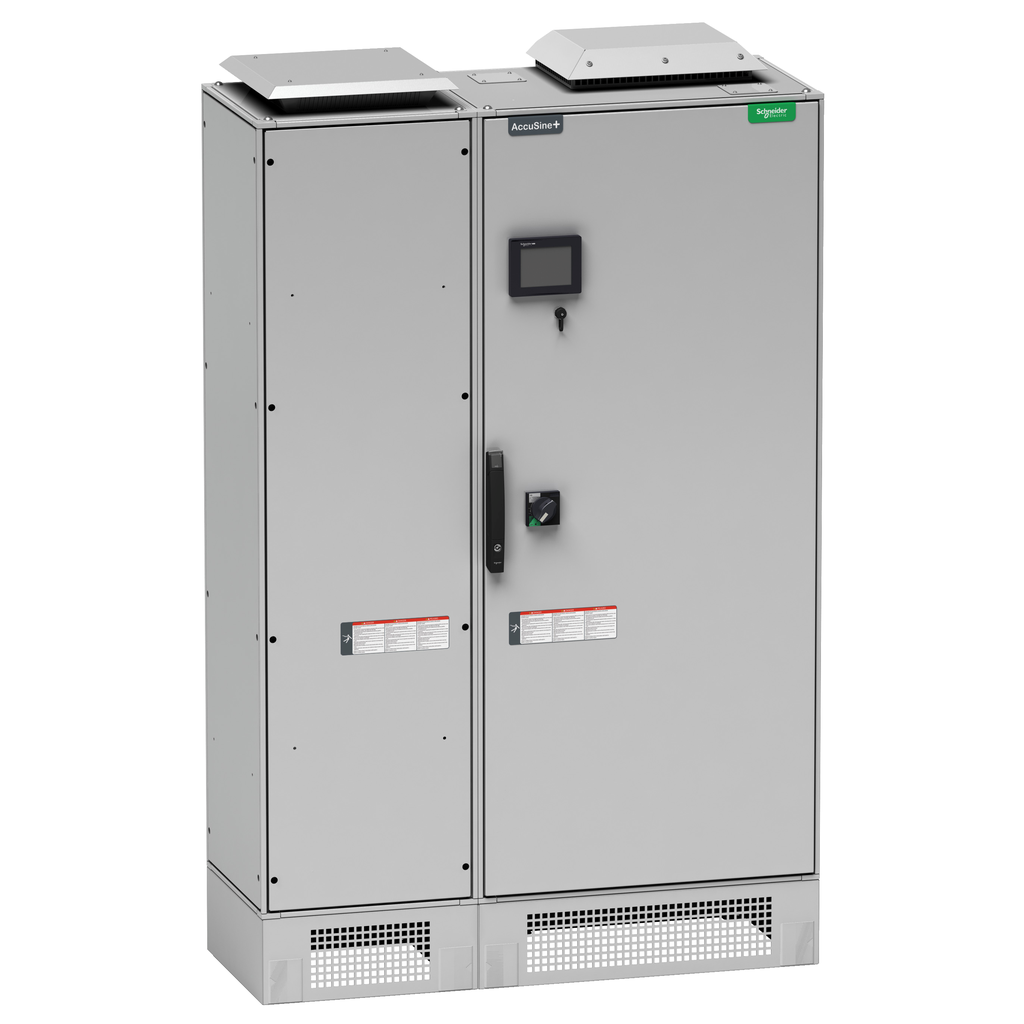

Active harmonic filter 94 amp 500-600 VAC N2 Enclosure
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type 2, and can be connected on Low Voltage networks rated 480 Volt to 600 Volt. It is specified for a standard Root Mean Square output current rating of 94 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 1300 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 498 kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Height | 2100 mm |
| Standards |
|
| Ambient Air Temperature For Operation |
|
| Environmental Characteristic |
|
| Net Weight | 413 kg |
| Impregnation Material | conformal coated |
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 0-95 % |
| Operating Altitude | <= 3280.84 ft (1000 m) 1 % per 100 m |
| Color | Light gray RAL 7035) |
| Width | 1300 mm |
| Depth | 500 mm |
| Degree Of Protection | UL type 2 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Accessibility For Operation | front |
| Reactive Power Rating | 98 kvar 600 V AC 50/60 Hz |
| Breaking Capacity | 100 kA |
| Network Rated Voltage | 500-600 V AC |
| Operating Mode |
|
| Mounting Location | indoor |
| Control Type | door-interlocked with rotary handle |
| Electromagnetic Compatibility | conducted EMC, class A EN 61000-6-4 |
| Function Available | rear plenum with forced ventilation for high heat flow |
| Input Frequency | 50/60 Hz +/- 3 Hz auto sensing |
| Neutral Protection Setting | not provided |
| Enclosure Mounting | floor-standing |
| Nominal Output Current | 94 A |
| Poles Description | 3P |
| Protection Type | circuit breaker protection |
| Location Of Connection | top or bottom |
| Maximum Permissible Voltage | 1.1 x Un |
| Wiring Mode | 3 or 4 wires |
| Width | 1300 mm |
| Height | 2100 mm |
| Weight | 413 kg |
| Range Of Product | AccuSine |
| Product Or Component Type | active harmonic filter |
| Product Name | AccuSine PCS+ |
