PBTB506G

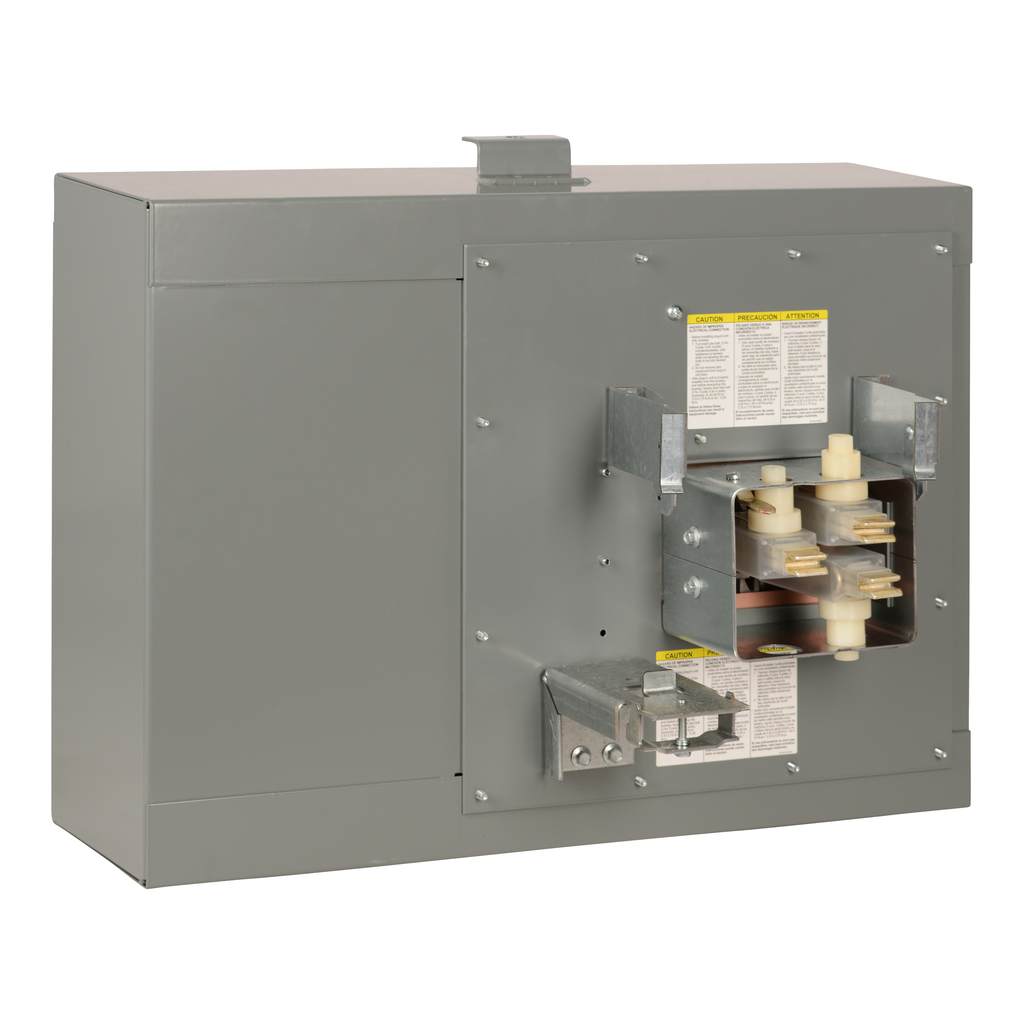

Busway, I-Line, plug in, tap box, 400A, 600VAC, aluminum, 600A, 600 VAC, copper, 3 phase, 4 wire, integral ground bus
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in tap box is for 400A and 600A 3 phase, 4 wire with integral ground bus systems. I-Line busway is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards | UL 857 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407014EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 468 mm |
| Phase | 3 phase |
| Material | aluminium |
| Line Rated Current |
|
| Mounting Mode | plug-in |
| Width | 659 mm |
| Wiring Configuration | 4-wire (integral ground bus) |
| Depth | 197 mm |
| Awg Gauge |
|
| Country of Origin | United States |
| Width | 659 mm |
| Height | 468 mm |
| Range Of Product | I-Line |
| Product Or Component Type | tap box |
