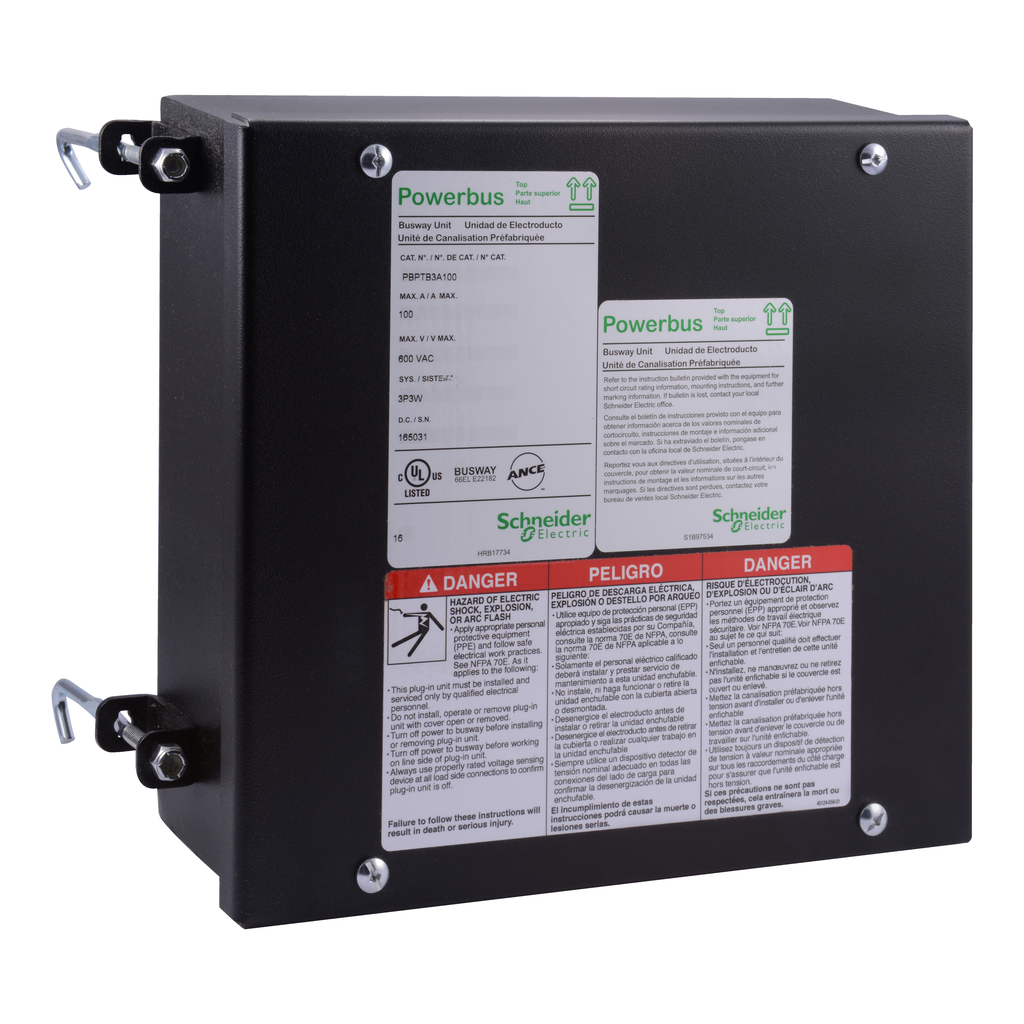

PBPTB5A100
Plug-in unit, Powerbus busway, tap box, 100A, NEMA 1, 5A config
Specifications
| Ip Degree Of Protection | IP40 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312018EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1312018EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Phase | 3 phase |
| Enclosure Material | Aluminum |
| Box Number | 5A L1 + IG + L2 + N + L3 |
| Material | silver plated copper: busbar |
| Line Rated Current | 100 A |
| Protection Type | 50 percent capacity integral ground bus |
| Wiring Configuration | 4-wire (isolated ground and 100 percent neutral) |
| [Ue] Rated Operational Voltage | 240 V AC |
| Awg Gauge |
|
| Range Of Product | Powerbus |
| Product Or Component Type | tap box |
