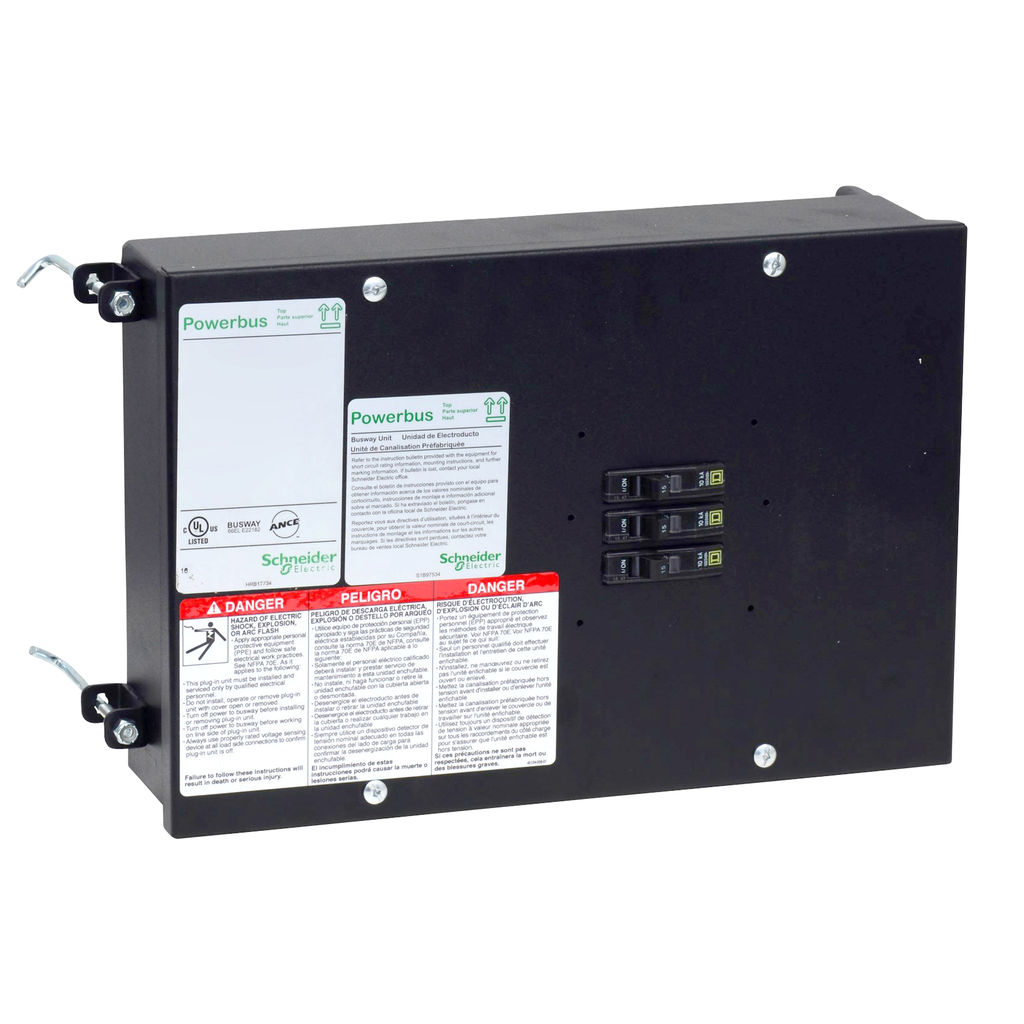

PBPQO4A100 – Plug-in unit, Powerbus 225 busway, 100A, 3 phase, for QO or QOB circuit breakers
PBPQO4A100
Plug-in unit, Powerbus 225 busway, 100A, 3 phase, for QO or QOB circuit breakers

Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit with 3 spaces for QO/QOB circuit breakers that is rated at 100A. The busbar configuration for this plug-in unit is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1312018EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1312018EN
Eu Rohs Directive Compliant with Exemptions
Country of Origin United States
Range Of Product Powerbus
Product Or Component Type plug-in unit
Provided Equipment without receptacle
Provided Equipment without receptacle
Circuit Breaker Name QO/QOB, 3 ordered separately
Phase 3 phase
Box Number 4A L1 + L2 + N + L3
Line Rated Current 100 A
Number Of Openings without opening
Warranty 18 months
