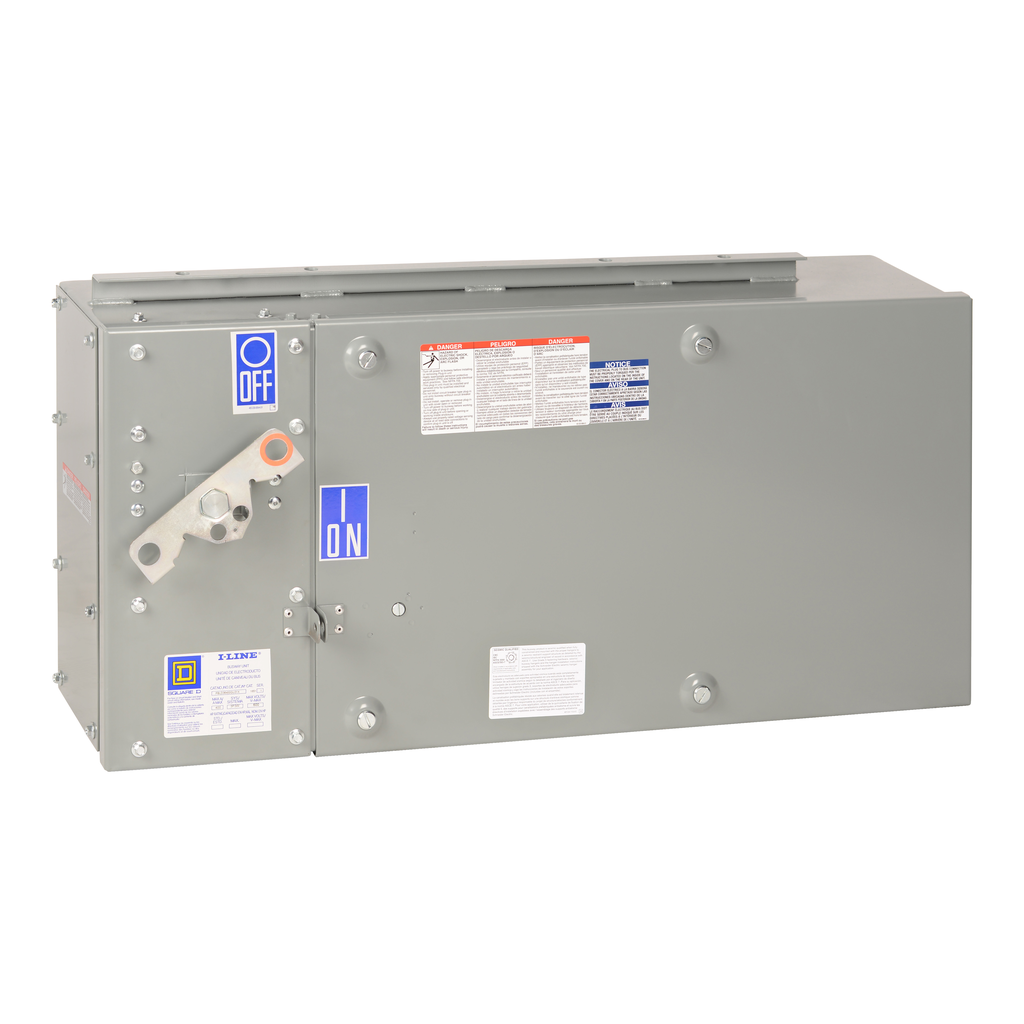

PBLG36400GNU31X – Plug-in unit, I-Line Busway, L-frame, 400A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral, MicroLogic 3.3
PBLG36400GNU31X
Plug-in unit, I-Line Busway, L-frame, 400A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral, MicroLogic 3.3

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 400A, 600VAC, 3 phase, 4 wire with L-frame breaker and MicroLogic 3.3 trip unit. Its circuit breaker has a 18kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1410002EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile N/A
Eu Rohs Directive Compliant with Exemptions
Width 926 mm
Height 442 mm
Trip Unit Technology electronic, standard, MicroLogic 3.3, LI
Range Of Product I-Line
Circuit Breaker Type L-Frame
Product Or Component Type plug-in unit
Height 442 mm
Phase 3 phase
Line Rated Current 400-400 A
Mounting Mode plug-in
Poles Description 3P
Protection Type circuit breaker
Width 926 mm
Wiring Configuration 4-wire (integral ground bus)
Depth 367 mm
[Ue] Rated Operational Voltage 600 V AC
Awg Gauge
  • AWG 2/0...500 kcmil 2 phase
  • AWG 1/0...600 kcmil 2 neutral
  • AWG 6...300 kcmil 1 ground
Breaking Capacity
  • 65 kA 240 V AC
  • 35 kA 480 V AC
  • 18 kA 600 V AC
[Ics] Rated Service Short-Circuit Breaking Capacity 80 %
Product Certifications
  • UL listed file E22182
  • CSA C22.2 No 27
Standards UL 857
