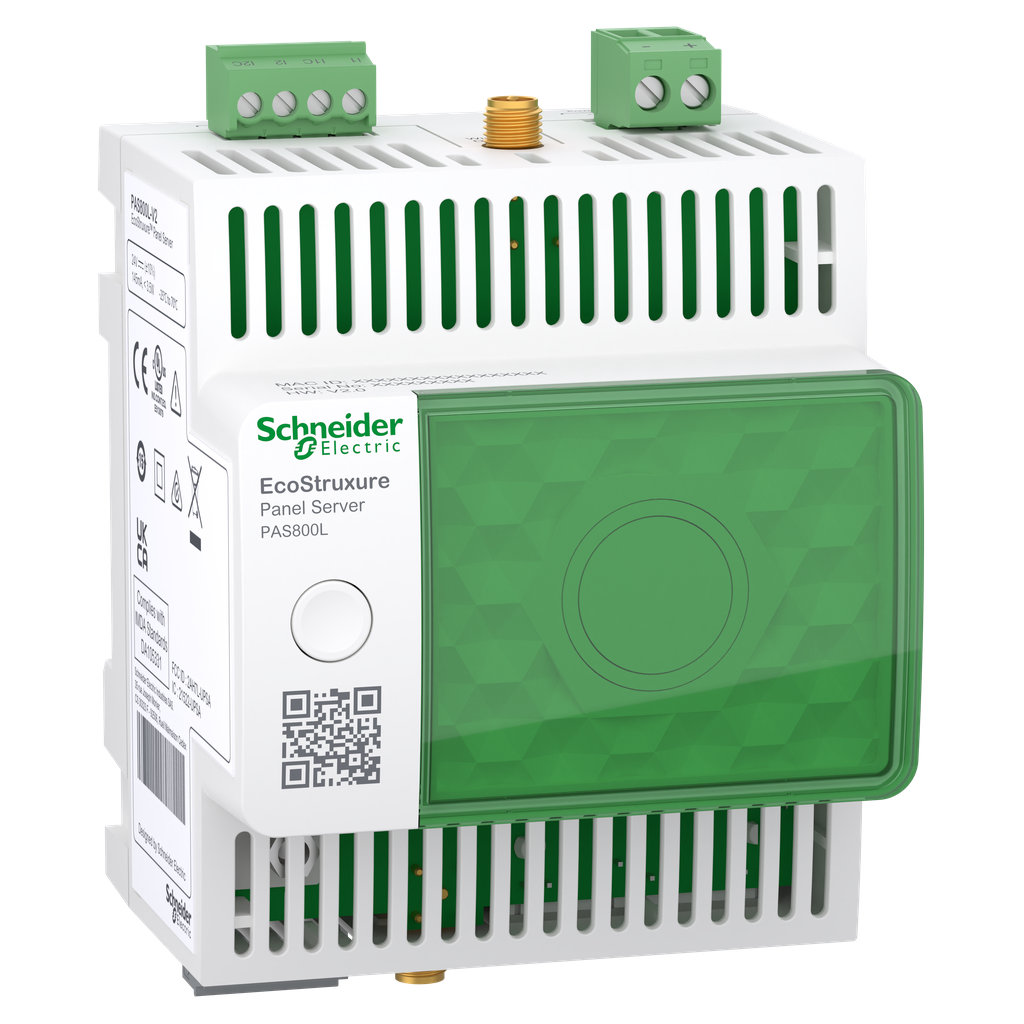

EcoStruxure Panel Server - advanced datalogger, energy server, 24 VDC
EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for external Wi-Fi/Bluetoth antenna. Connector for external antenna for wireless devices. Two connectors for Wi-Fi/Bluetooth external antenna and wireless devices external antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Communication Port Support |
|
| Height | 93 mm |
| Data Retention Time | 3 month(s) |
| Connector Type |
|
| Standards |
|
| Maximum Power Consumption In W | 3.5 W 24 V |
| Mounting Support | DIN rail |
| Range Compatibility |
|
| Communication Port Protocol |
|
| Communication Service |
|
| Number Of Inputs | 2-2 digital |
| Net Weight | 186 g |
| Communication Network Type |
|
| Wire Stripping Length |
|
| Memory Capacity |
|
| Connections - Terminals |
|
| Topology |
|
| Function Available |
|
| Mounting Mode | clip-on |
| Number Of Devices | 64 Modbus TCP/IP |
| Commissioning Interface |
|
| Time Synchronisation Protocol |
|
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Data Recording |
|
| Realtime Clock |
|
| Number Of Connectors | 2 RP-SMA Wi-Fi and IEEE 802.15.4 |
| Web Services |
|
| Width | 72 mm |
| Tightening Torque |
|
| Number Of Server Device(S) |
|
| Depth | 70.2 mm |
| Country of Origin | India |
| Width | 72 mm |
| Height | 93 mm |
| Weight | 186 g |
| Product Or Component Type | gateway |
| Product Name | Panel Server Advanced |
| Range | EcoStruxure |
| Communication Gateway |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Device Application |
|
| Device Short Name | PAS800L |
| Pollution Degree | 3 |
| Ambient Air Temperature For Operation |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2008001_V2 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2008001_V2 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts & cables product |
