P1200R

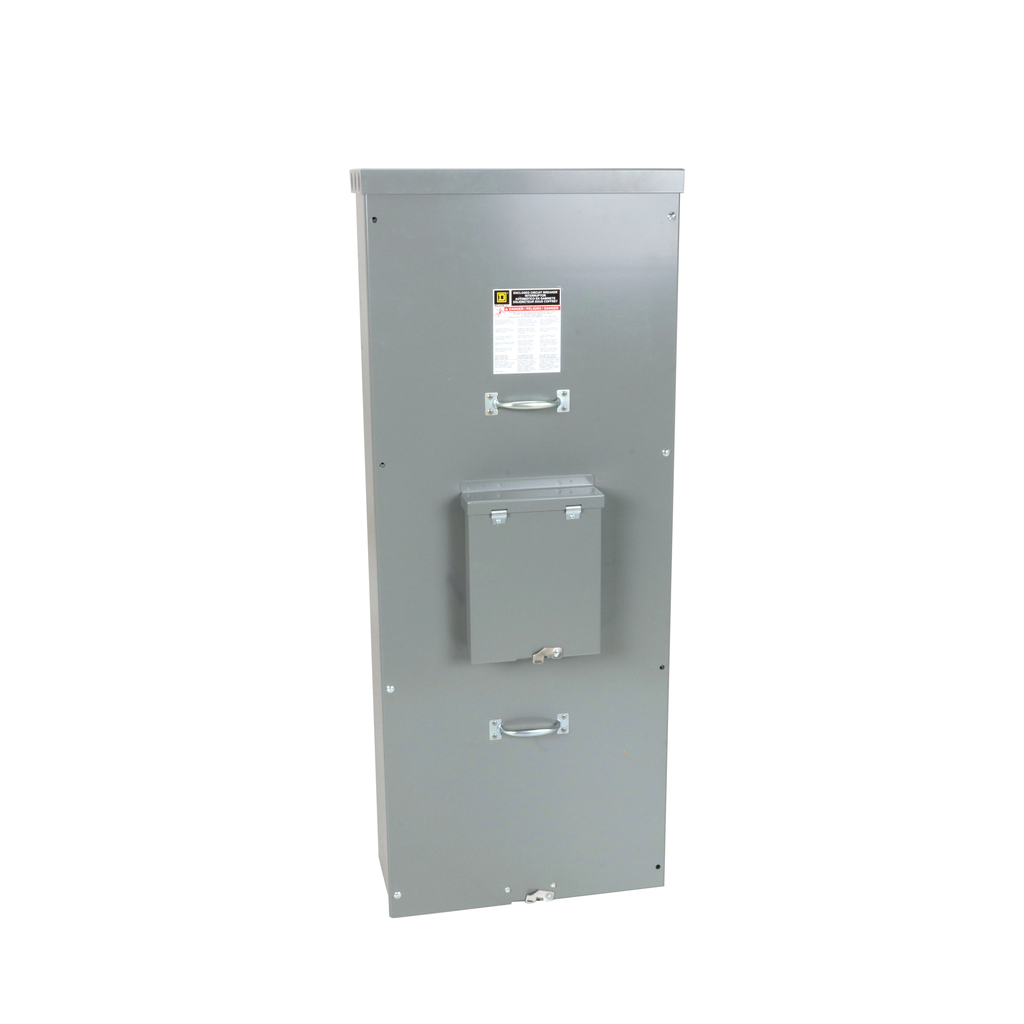

Circuit breaker enclosure, PowerPacT P, 600A to 1200A, 2 and 3 pole, NEMA 3R, steel
This is a circuit breaker enclosure for PowerPacT P. This enclosure has a NEMA 3R rating of protection. This enclosure accepts either 2 pole or 3 pole circuit breakers. With a rated current of 600A to 1200A. This enclosure is made of steel. Dimensions for this product are 1323.98 mm (H), 533.4 mm (W), 247.65 mm (D). This product complies with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 1323.98 mm |
| Net Weight | 53.52 kg |
| Line Rated Current | 600-1200 A |
| Poles Description |
|
| Enclosure Material | steel |
| Width | 533.4 mm |
| Depth | 247.65 mm |
| Country of Origin | United States |
| Width | 533.4 mm |
| Height | 1323.98 mm |
| Weight | 53.52 kg |
| Circuit Breaker Type |
|
| Product Destination |
|
