NSYZZ254G

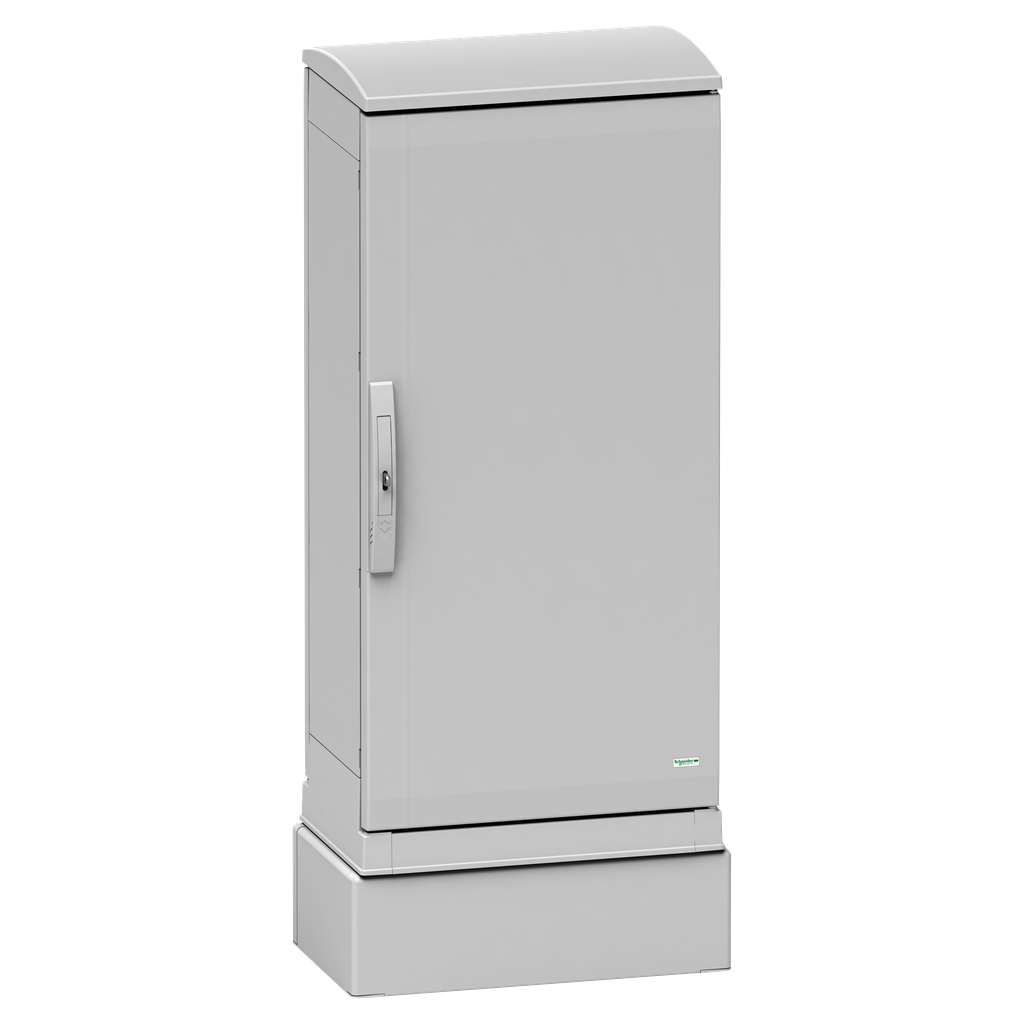

Polyester glassreinf. plinth for encl. PLAZ(T)54 front opening IP44-IK10 RAL7035
Specifications
| Ik Degree Of Protection | IK10 |
|---|---|
| Ip Degree Of Protection | IP44 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110921EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by screws - on side parts |
| Depth | 410 mm |
| Width | 535 mm |
| Height | 200 mm |
| Color | plinth Gray RAL 7035) |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - D: 420 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | plinth |
| Range | Thalassa |
| Device Composition |
|
| Device Application | multi-purpose |
