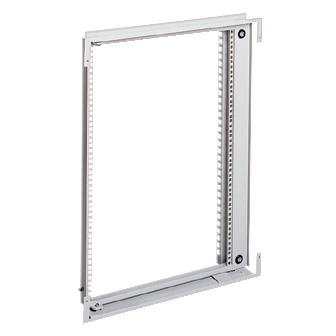

NSYVDM25U8P
19" swing chass 25U W800 Spacial
Specifications
| Country of Origin | Spain |
|---|---|
| Weight | 12.76 kg |
| Rack Type | swing |
| Enclosure Nominal Dimensions |
|
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | front of enclosure |
| Number Of Units 19" | 25 |
| Device Application |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by fixing element |
| Surface Finish | epoxy-polyester powder |
| Opening Of The 19" Racks | reversible 120 ° |
| Enclosure/Cubicle Description | wall-mounted enclosure |
| Lock Type | lock with 3 mm double bar insert |
| Net Weight | 12.76 kg |
| Depth | 140 mm |
| Permanent Permissible Load | 3 kg per unit |
| Width | nominal: 800 mm |
| Height | nominal: 1200 mm |
| Material | chassis steel |
| Color | Gray RAL 7035) |
| Warranty | 18 months |
