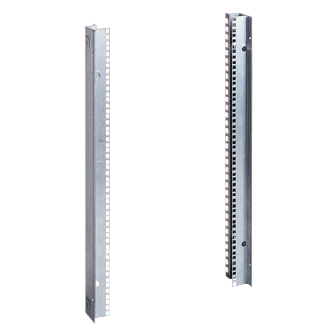

NSYVDM17UF - 19" fixed chassis 17U Spacial - Royal Wholesale Electric Suppliers

NSYVDM17UF

Add to Quote Catalogue

Country of Origin	Spain
Weight	4.72 kg
Rack Type	fixed
Enclosure Nominal Dimensions	- H: 800 mm W: 600 mm D: 200 mm - H: 800 mm W: 600 mm D: 250 mm - H: 800 mm W: 600 mm D: 300 mm - H: 800 mm W: 600 mm D: 400 mm
Range Compatibility	PanelSeT PanelSeT S3D PanelSeT PanelSeT S3X PanelSeT PanelSeT VDM PanelSeT PanelSeT CRN PanelSeT PanelSeT CRNG
Accessory / Separate Part Category	mounting accessory
Product Or Component Type	19" rack
Device Composition	fixing elements 2 19" uprights
Range	PanelSeT
Mounting Location	front of enclosure step slide
Number Of Units 19"	17
Device Application	multi-purpose electronic application
Adjustment	adjustable in depth, pitch 12.5 mm, on the step slide
Fixing Mode	by fixing element
Thickness	2 mm
Enclosure/Cubicle Description	wall-mounted enclosure
Net Weight	4.72 kg
Depth	830 mm
Permanent Permissible Load	3 kg per unit
Width	nominal: 600 mm
Height	nominal: 800 mm
Material	galvanised steel
Color	Gray RAL 7035)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP100104EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Warranty	18 months
