NSYUM27270
Coupling frame length200mm for 27cm faces of PLS box- IP65

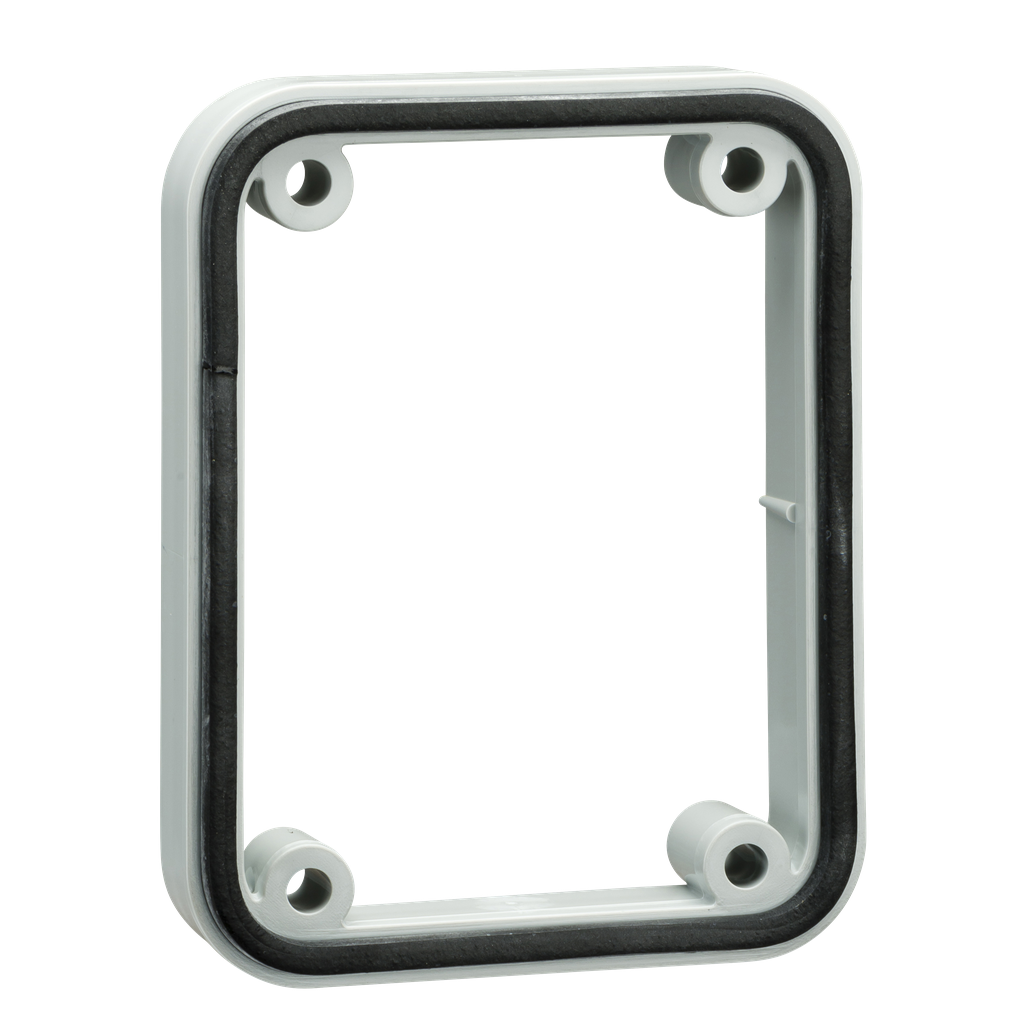

Thalassa PLS full-opening coupling frame. Length 200 mm for 27 cm faces of PLS box. Multi-purpose application. Mounting location on side coupling of 2 modular boxes. 1 frame and 1 gasket. Set of 10. IP65.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Range Compatibility | Thalassa Thalassa PLS insulating modular box |
| Accessory / Separate Part Category | coupling accessory |
| Product Or Component Type | full-opening coupling frame |
| Device Composition |
|
| Range | Thalassa |
| Mounting Location | side coupling of 2 modular boxes |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110704EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Depth | 230 mm |
| Width | opening: 200 mm |
| Height | 5 mm |
| Ip Degree Of Protection | IP65 |
| Warranty | 18 months |
