NSYTSPC450

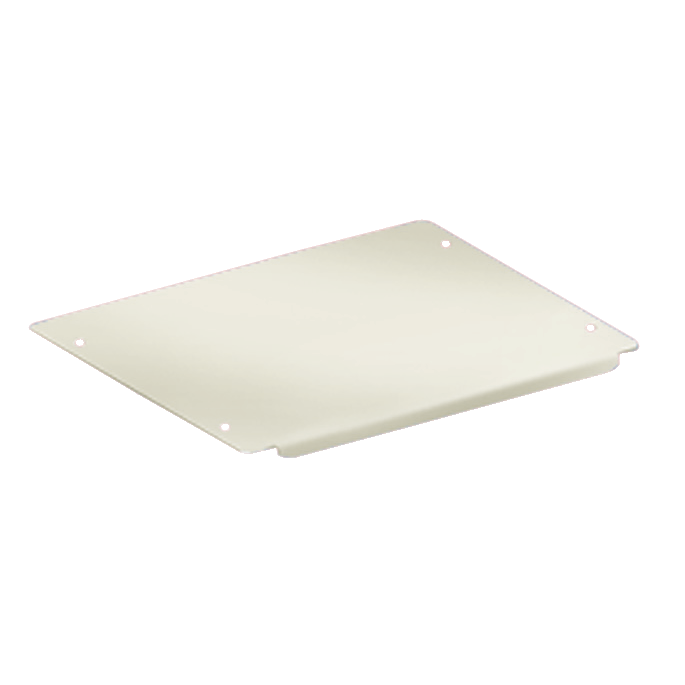

Actassi - plain roof plate
Removable plain roof plate made from folded sheet steel, RAL 7035 light grey. Plate delivered assembled on the framework. You have the possibility to complete this installation with the roof stand-offs and blanking plates options.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Range Of Product | Actassi |
| Product Or Component Type | roof plate |
| Quantity Per Set | set of 1 |
| Color | Gray RAL 7035) |
| Accessory / Separate Part Type | top roof plate |
| Device Application | electronic application |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by screws |
| Surface Finish | epoxy-polyester powder |
| Device Composition |
|
| Mounting Location | on outside of the roof |
| Width | fixing centers: 420 mm |
| Height | 12.5 mm |
| Material | steel |
| Product Compatibility | SF roof for Actassi plates |
| Warranty | 18 months |
