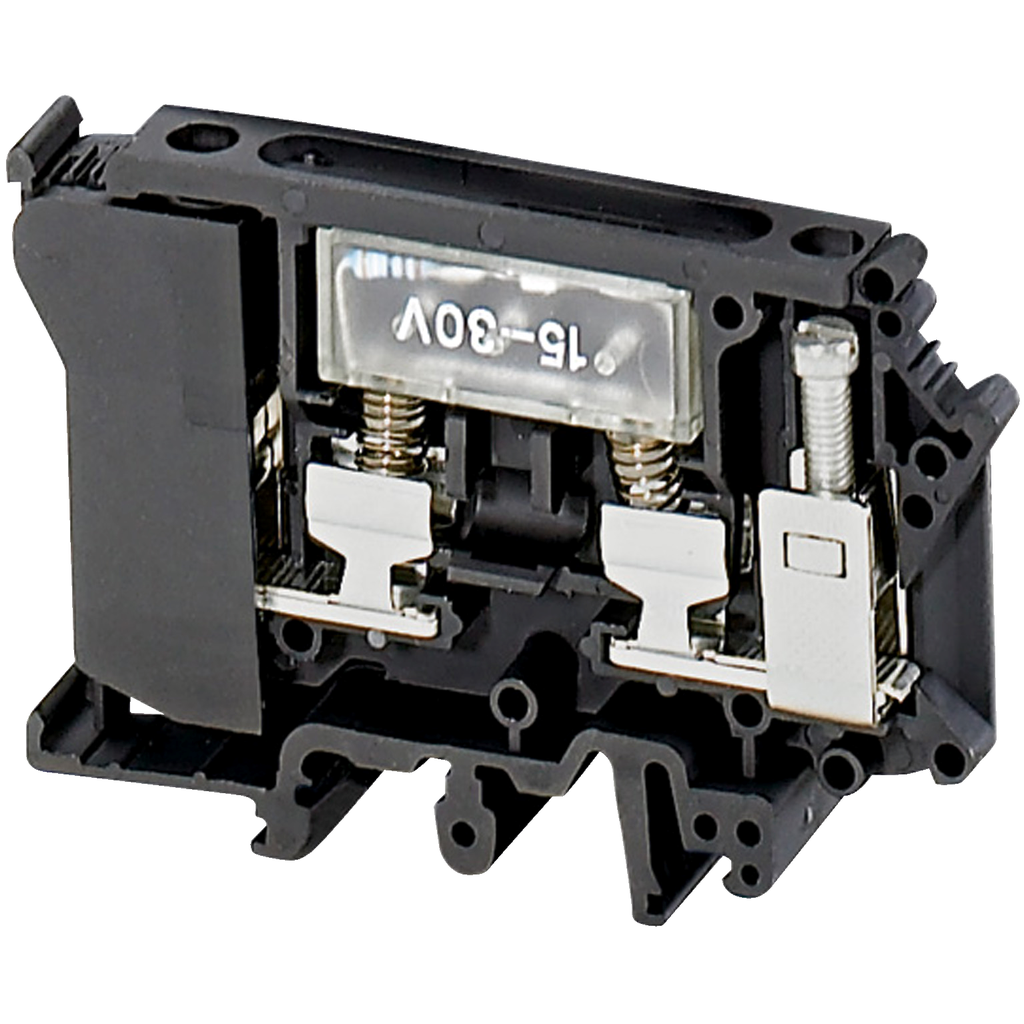

NSYTRV42SF6LD
Terminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with light indicator 12 to 30V, black
Specifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2309018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Dielectric Loss |
|
| Fuse Size | 6.3 x 32 mm |
| Height | 60.5 mm |
| Number Of Terminals | 2 |
| Connections - Terminals |
|
| Cable Cross Section |
|
| Provided Equipment | 12...30 V light indicator |
| Connection Position | sideways |
| Number Of Measurement Input | 0 |
| Tool Type |
|
| Net Weight | 34.2 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Wire Stripping Length | 9 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material | polyamide 6/6: insulating case |
| Surface Resistance |
|
| Width | 10.2 mm |
| Range Compatibility |
|
| Tightening Torque | 0.6-0.8 N.m |
| Product Compatibility | Spacial enclosures |
| Line Rated Current |
|
| Creep Resistance |
|
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Turkey |
| Width | 10.2 mm |
| Height | 60.5 mm |
| Weight | 34.2 g |
| Terminal Block Type | fused disconnect |
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 79 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Nominal Cross Section | 16 mm² |
| Quantity Per Set | set of 50 |
| Color | Black |
| Device Short Name | TRV |
