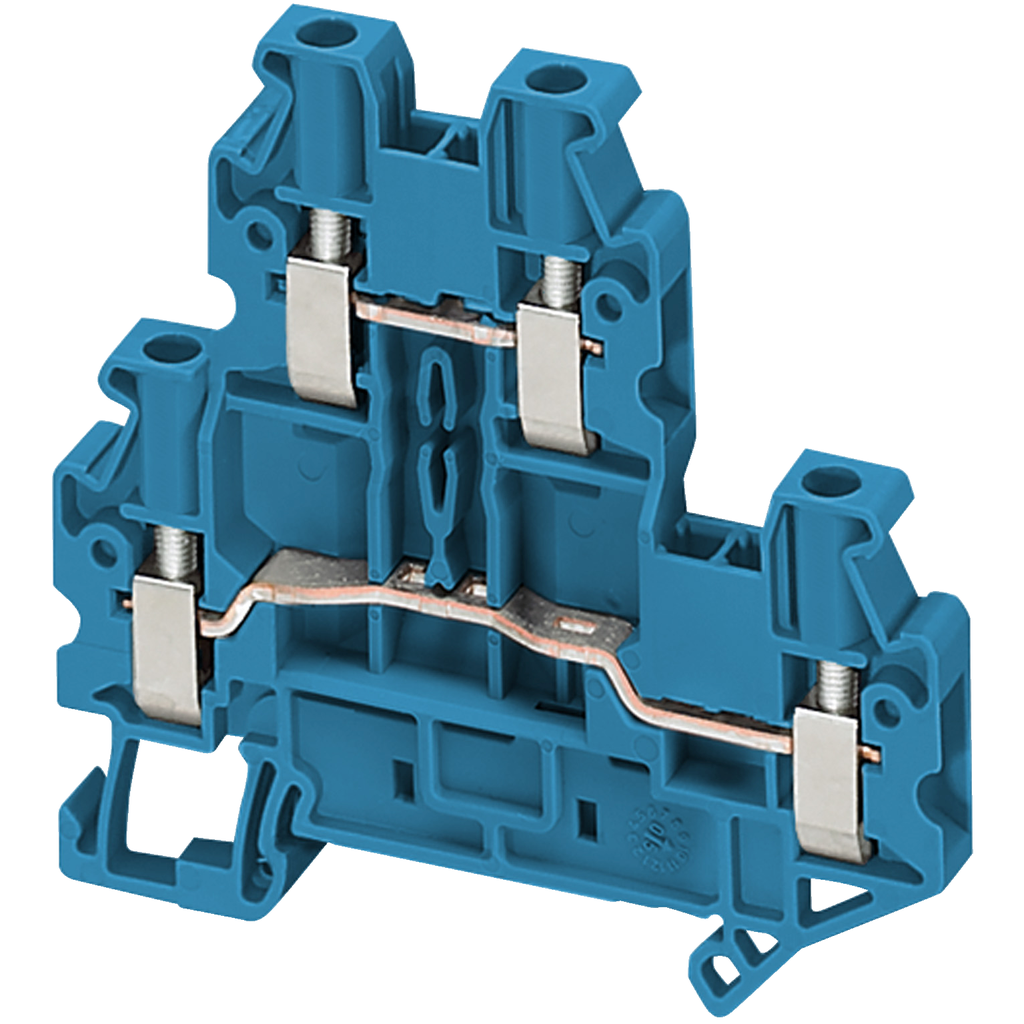

NSYTRV24DBL - Terminal block, Linergy TR, blue, 2.5mm2, double level, 4 points, set of 10

NSYTRV24DBL

Terminal block, Linergy TR, blue, 2.5mm2, double level, 4 points, set of 10

Add to Quote Catalogue

Specifications

Product Certifications	GL ATEX CSA EAC LR DNV IEC-Ex cURus
Ambient Air Temperature For Operation	-40-130 °C IEC 60216-1 -40-130 °C VDE 0304-T21
Dielectric Strength	1000 V IEC 60243-1
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2309018EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Dielectric Loss	0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Height	65 mm
Number Of Terminals	2
Connection Position	sideways
Number Of Measurement Input	4
Tool Type	connection screwdriver disconnection screwdriver
Net Weight	15.3 g
Flame Retardance	V0 0.8 mm UL 94
Connections - Terminals	1 x screw terminal upstream M3) 1 x screw terminal downstream M3)
Wire Stripping Length	9 mm
Resistivity	10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Dielectric Constant	3.7 at 1 MHz
Cable Cross Section	0.14-4 mm², solid with cable end 0.2-2.5 mm², flexible with cable end 0.14-4 mm², solid without cable end 0.14-4 mm², flexible without cable end
Material	polyamide 6/6: insulating case copper alloy: connector and screw copper alloy: commoning link chromium-nickel steel: spring
Surface Resistance	1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Width	5.2 mm
Range Compatibility	Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
Tightening Torque	0.5-0.6 N.m
Product Compatibility	Spacial enclosures
Line Rated Current	24-24 A EN/IEC 60947-7-1 20-20 A cURus 20-20 A CSA 20-20 A ATEX Exe II Ex II 2 GD
Creep Resistance	500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
[Ue] Rated Operational Voltage	600 V CSA 500 V EN/IEC 60947-7-1 352 V ATEX Exe II Ex II 2 GD 600 V cURus
Country of Origin	United States
Width	5.2 mm
Height	65 mm
Weight	15.3 g
Terminal Block Type	passthrough
Accessory / Separate Part Category	connection accessory
Product Or Component Type	terminal block
Product Name	Linergy TR
Length	69.9 mm
Range	Linergy
Mounting Mode	clip-on
Terminal Block Level	2
Nominal Cross Section	2.5 mm²
Quantity Per Set	set of 50
Color	Blue
Device Short Name	TRV

Terminal block, Linergy TR, blue, 2.5mm2, double level, 4 points, set of 10
