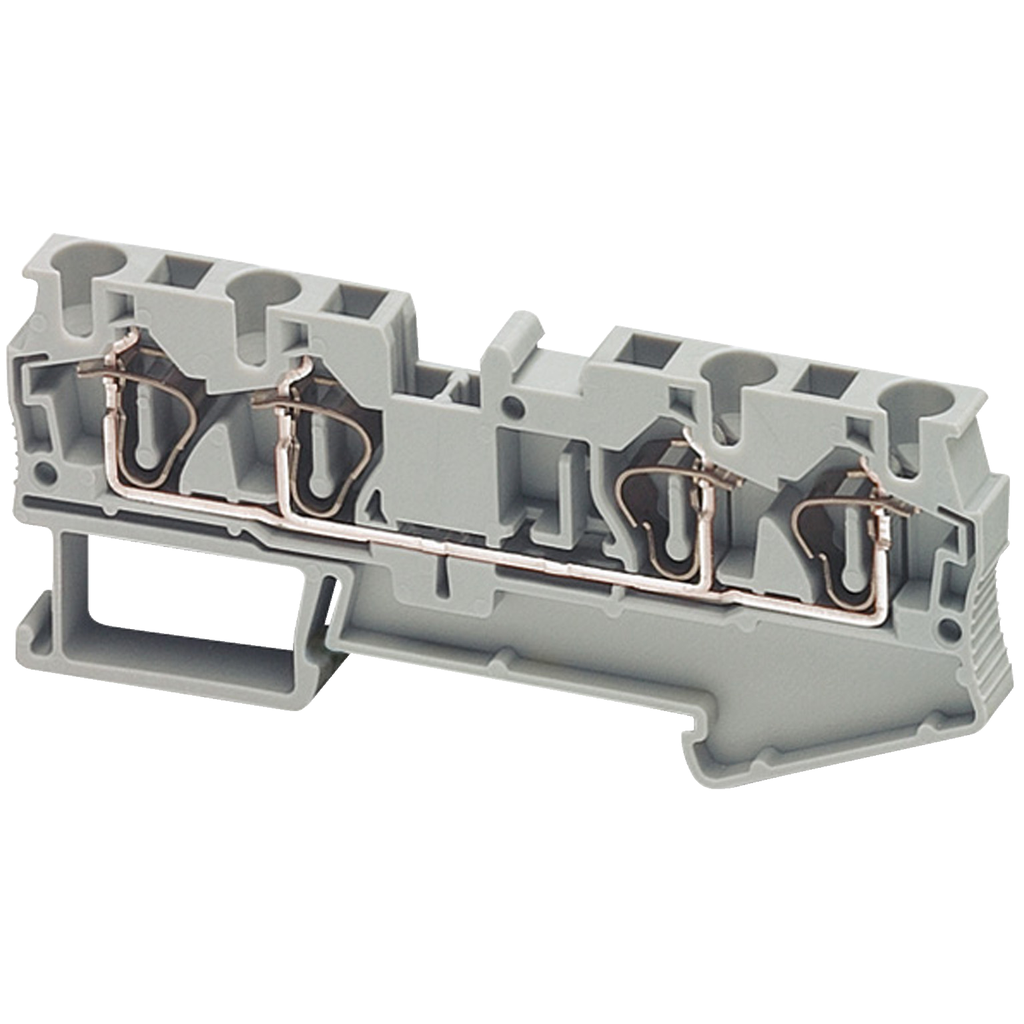

NSYTRR44 - Terminal block, Linergy TR, spring type, feed through, 4 points, 4mm², grey, set of 50

NSYTRR44

Terminal block, Linergy TR, spring type, feed through, 4 points, 4mm², grey, set of 50

Add to Quote Catalogue

Specifications

Product Certifications	cURus IEC-Ex VDE ATEX DNV EAC CSA GL LR
Ambient Air Temperature For Operation	-40-130 °C IEC 60216-1 -40-130 °C VDE 0304-T21
Dielectric Strength	1000 V IEC 60243-1
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2309017EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Halogen Content Performance	Halogen free plastic parts product
Dielectric Loss	0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Height	36.5 mm
Number Of Terminals	4
Connections - Terminals	2 x spring terminal downstream 2 x spring terminal upstream
Cable Cross Section	0.08-4 mm², solid without cable end 0.08-4 mm², flexible without cable end 0.08-6 mm², solid with cable end 0.2-4 mm², flexible with cable end
Connection Position	top
Number Of Measurement Input	2
Tool Type	connection flat screwdriver disconnection flat screwdriver
Net Weight	13.4 g
Flame Retardance	V0 0.8 mm UL 94
Wire Stripping Length	10 mm
Resistivity	10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Dielectric Constant	3.7 at 1 MHz
Material	polyamide 6/6: insulating case copper alloy: connector and screw copper alloy: commoning link chromium-nickel steel: spring
Surface Resistance	1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Width	6.2 mm
Range Compatibility	Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
Product Compatibility	Spacial enclosures
Line Rated Current	32-32 A EN/IEC 60947-7-1 30-30 A CSA 30-30 A cURus
Creep Resistance	500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
[Ue] Rated Operational Voltage	600 V CSA 800 V EN/IEC 60947-7-1 600 V cURus
Country of Origin	Germany
Width	6.2 mm
Height	36.5 mm
Weight	13.4 g
Terminal Block Type	passthrough
Accessory / Separate Part Category	connection accessory
Product Or Component Type	terminal block
Product Name	Linergy TR
Length	87 mm
Range	Linergy
Mounting Mode	clip-on
Terminal Block Level	1
Nominal Cross Section	4 mm²
Quantity Per Set	set of 50
Color	Gray
Device Short Name	TRR
