NSYTRALR62

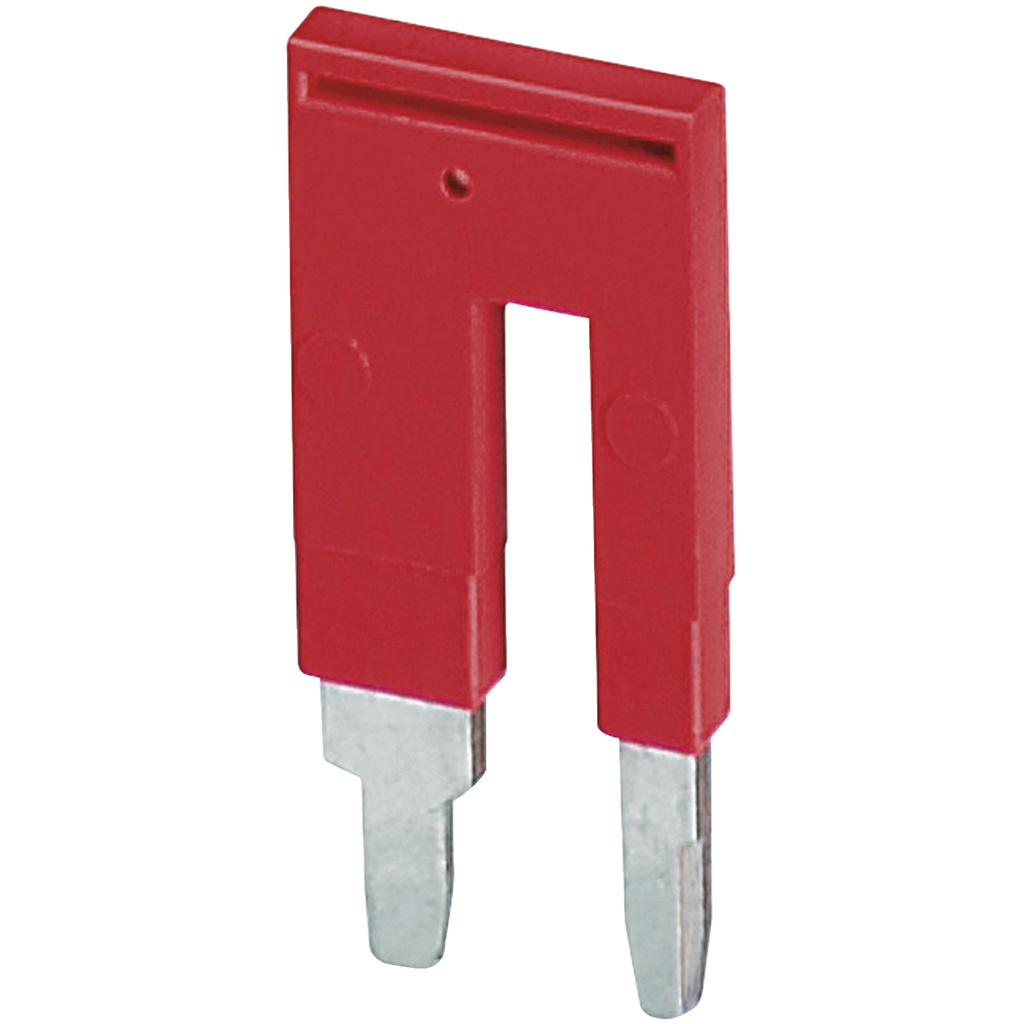

Reduction bridge spring to spring, Linergy TR terminals blocks, for connecting 6mm² to 2.5/4mm² spring terminal, red
Specifications
| Country of Origin | Poland |
|---|---|
| Weight | 3.7 g |
| Product Compatibility | TRR spring terminal - passthrough terminal block |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | reduction bridge screw to spring |
| Product Name | TR |
| Range | Linergy |
| Device Short Name | TRA |
| Number Of Terminals |
|
| Number Of Measurement Input | 2 |
| Net Weight | 3.7 g |
| Cable Cross Section | 6-6 mm² |
| Quantity Per Set | set of 10 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Warranty | 18 months |
