NSYTRAL220

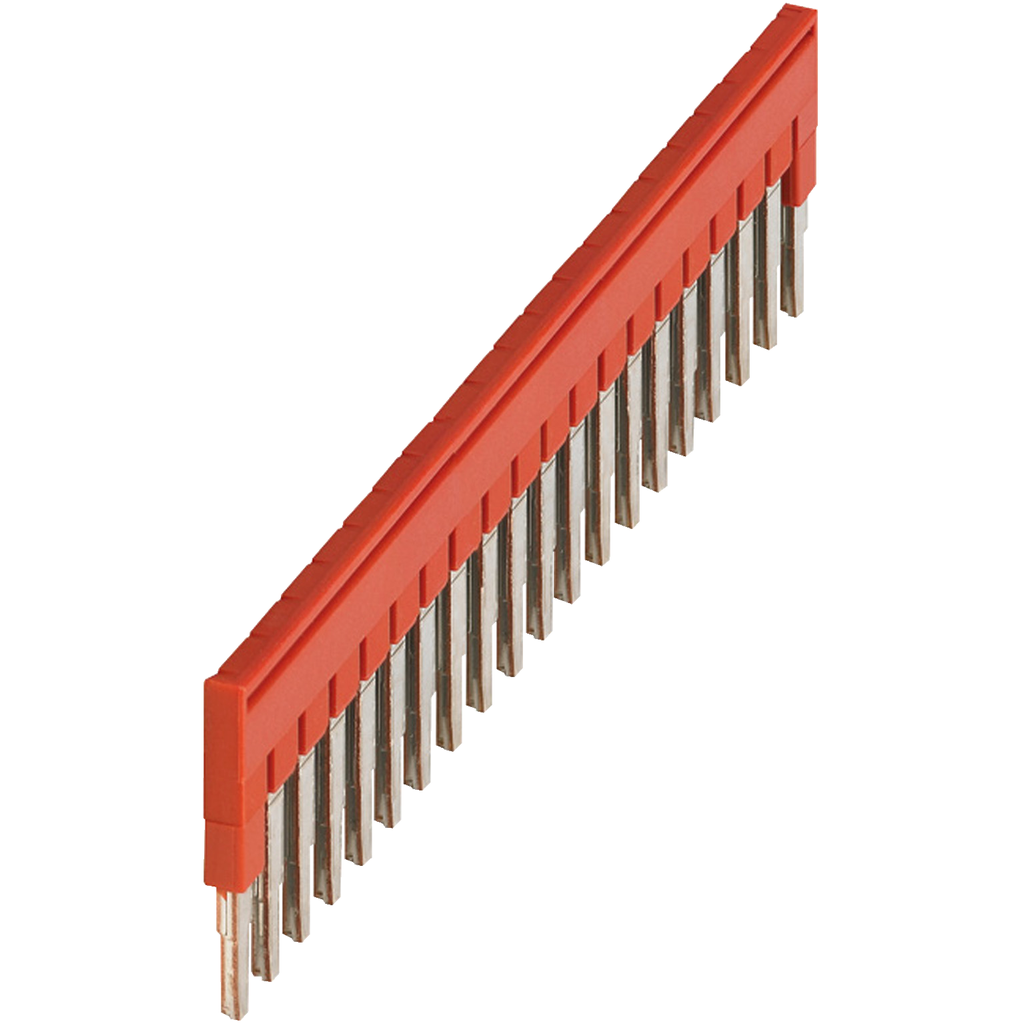

Plug-in bridge, Linergy TR, 20 points, for 2.5mm² terminal blocks, red, 20 way, set of 10
Linergy NSYTR plug-in bridge for terminal block. It has red surface treatment. It provides 20 ways for 2.5mm² terminals. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. Sold in lots of 10 units. It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Terminals |
|
|---|---|
| Number Of Measurement Input |
|
| Cable Cross Section | 2.5-2.5 mm² |
| Quantity Per Set | set of 10 |
| Color | Red |
| Country of Origin | United States |
| Product Compatibility |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | plug-in bridge |
| Product Name | Linergy TR |
| Range | Linergy |
| Number Of Ways | 20 ways |
| Device Short Name | TRA |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Warranty | 18 months |
