NSYTRACE24

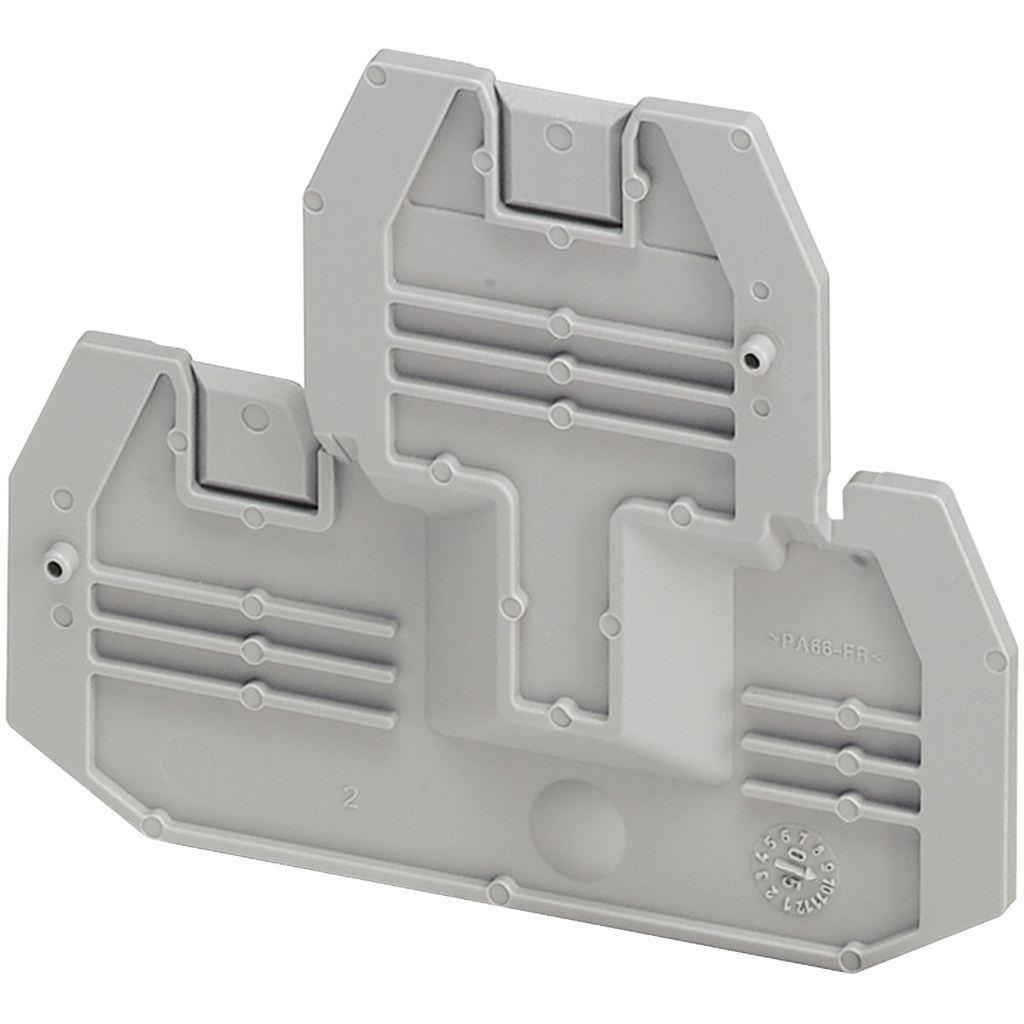

Cover plate, Linergy TR, 2 level, 2.2mm width, 4 points, for screw terminals NSYTRV24D, grey, Set of 50
Linergy NSYTR cover plate for terminal block. It is compatible with TRV screw terminal block. It has grey surface treatment. For screw double-level terminal block 1x1, 2.5 to 4mm². Sold in lots of 50 units. It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Terminals | 2 |
|---|---|
| Number Of Measurement Input |
|
| Net Weight | 2.2 g |
| Cable Cross Section |
|
| Quantity Per Set | set of 50 |
| Color | Gray |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Germany |
| Weight | 2.2 g |
| Product Compatibility | TRV screw terminal terminal block, length = 69.9 mm |
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | cover plate |
| Thickness | 2.2 mm |
| Product Name | Linergy TR |
| Range | Linergy |
| Device Short Name | TRA |
| Warranty | 18 months |
