NSYTRAC24

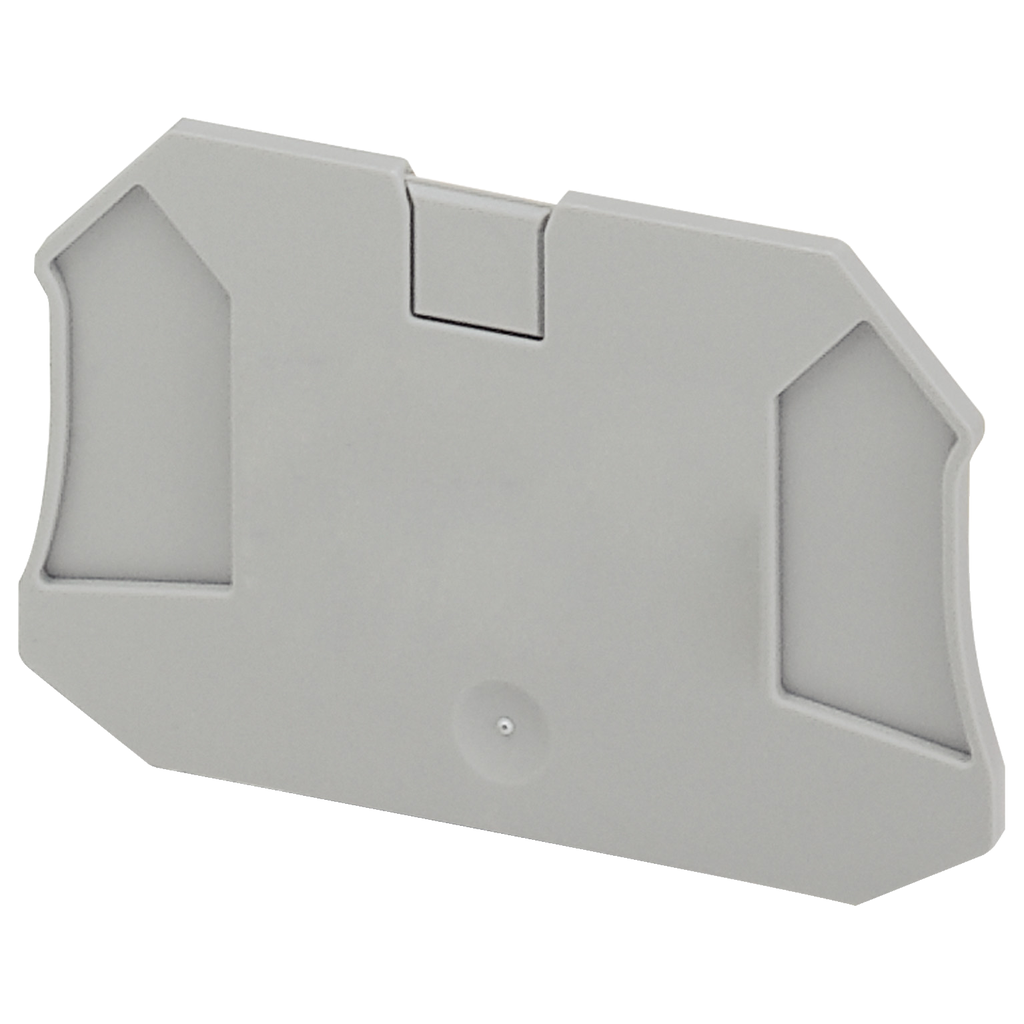

Terminal Blocks, Linergy, end cover, for screw terminal NSYTRV44
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This end cover is used to cover the electrical components of the last block in a group of NSYTRV44 blocks. The use of this end cover is required to maintain the UL component recognition and CSA certification of the NSYTRV44 block.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Terminals | 4 |
|---|---|
| Number Of Measurement Input | 2 |
| Net Weight | 3.5 g |
| Cable Cross Section | 4-4 mm² |
| Quantity Per Set | set of 50 |
| Color | Gray |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Poland |
| Weight | 3.5 g |
| Product Compatibility | TRV screw terminal terminal block, length = 65.4 mm |
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | cover plate |
| Thickness | 2.2 mm |
| Product Name | Linergy TR |
| Range | Linergy |
| Device Short Name | TRA |
| Warranty | 18 months |
