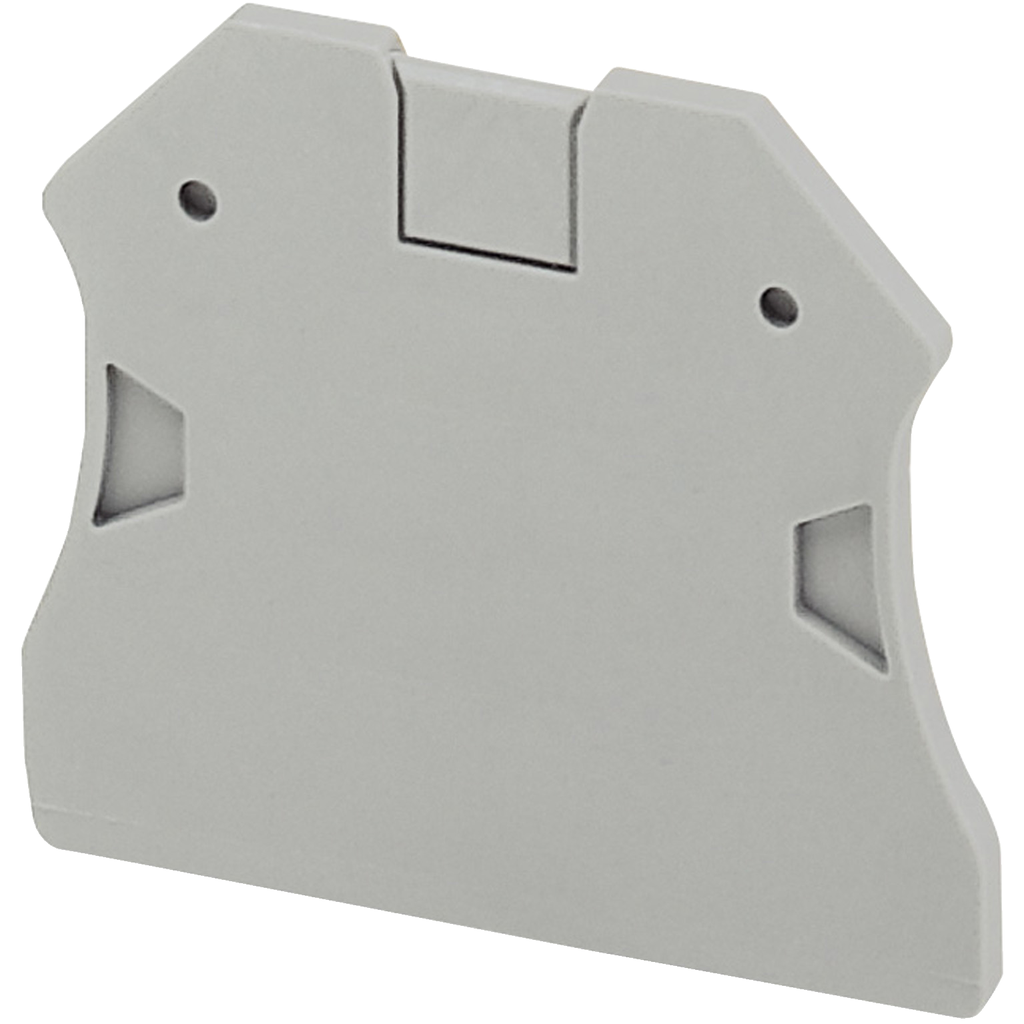

Linergy terminal blocks, end cover, for NSYTRV22, NSYTRV42 and NSYTRV terminal blocks, 2.2 mm wide, grey
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. For screw single-level terminal block 1x1, 2.5 to 10mm². It is compatible with TRV screw terminal. Sold in lots of 50 units. It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | cover plate |
| Thickness | 2.2 mm |
| Product Name | Linergy TR |
| Range | Linergy |
| Device Short Name | TRA |
| Warranty | 18 months |
| Number Of Terminals | 2 |
| Number Of Measurement Input |
|
| Net Weight | 2.4 g |
| Cable Cross Section |
|
| Quantity Per Set | set of 50 |
| Color | Gray |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
