NSYTRAC162

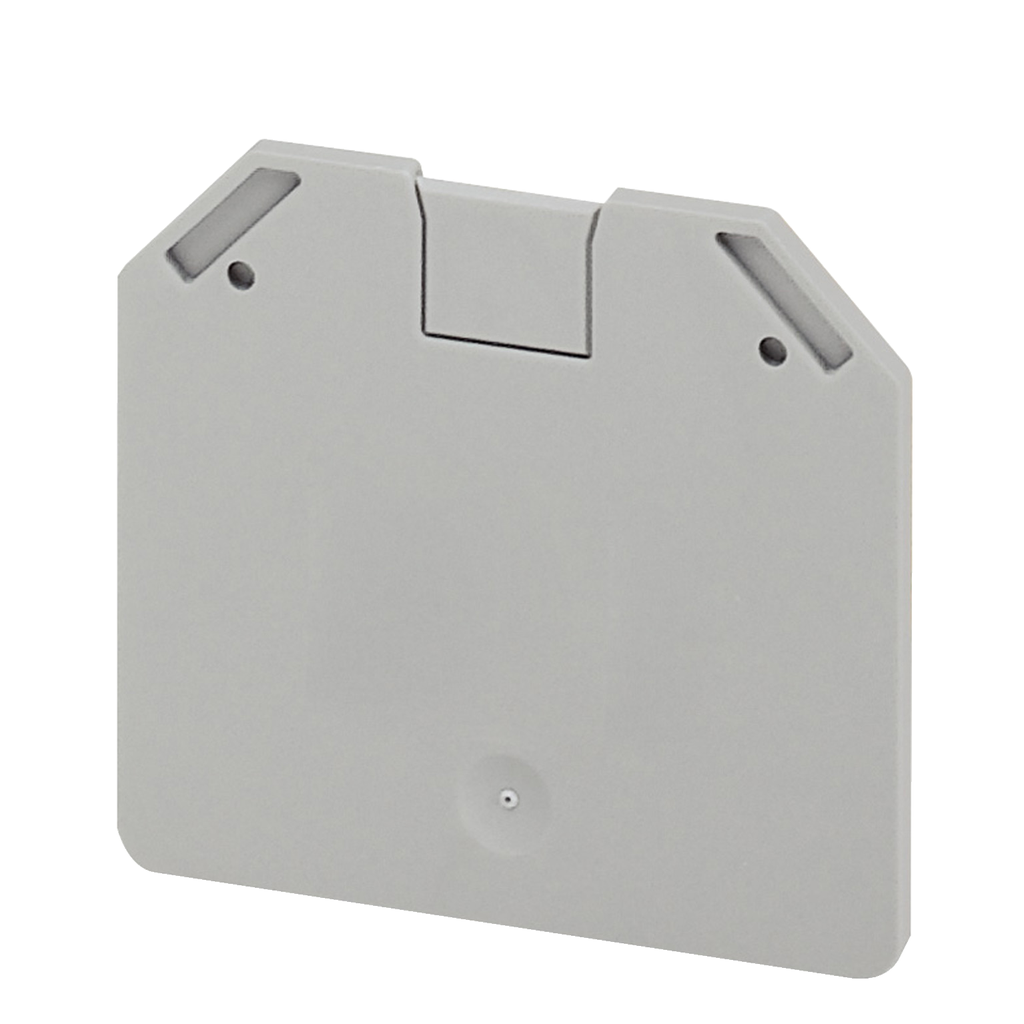

Cover plate, Linergy TR, 2 points, 2.2mm width, for screw terminal NSYTRV162, grey, Set of 50
Specifications
| Product Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessory |
| Product Or Component Type | cover plate |
| Thickness | 2.2 mm |
| Product Name | Linergy TR |
| Range | Linergy |
| Device Short Name | TRA |
| Warranty | 18 months |
| Number Of Terminals | 2 |
| Number Of Measurement Input | 2 |
| Net Weight | 3.5 g |
| Cable Cross Section | 16-16 mm² |
| Quantity Per Set | set of 50 |
| Color | Gray |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
