Standard for PanelSeT S3D encl. RAL7035, L445xW130.

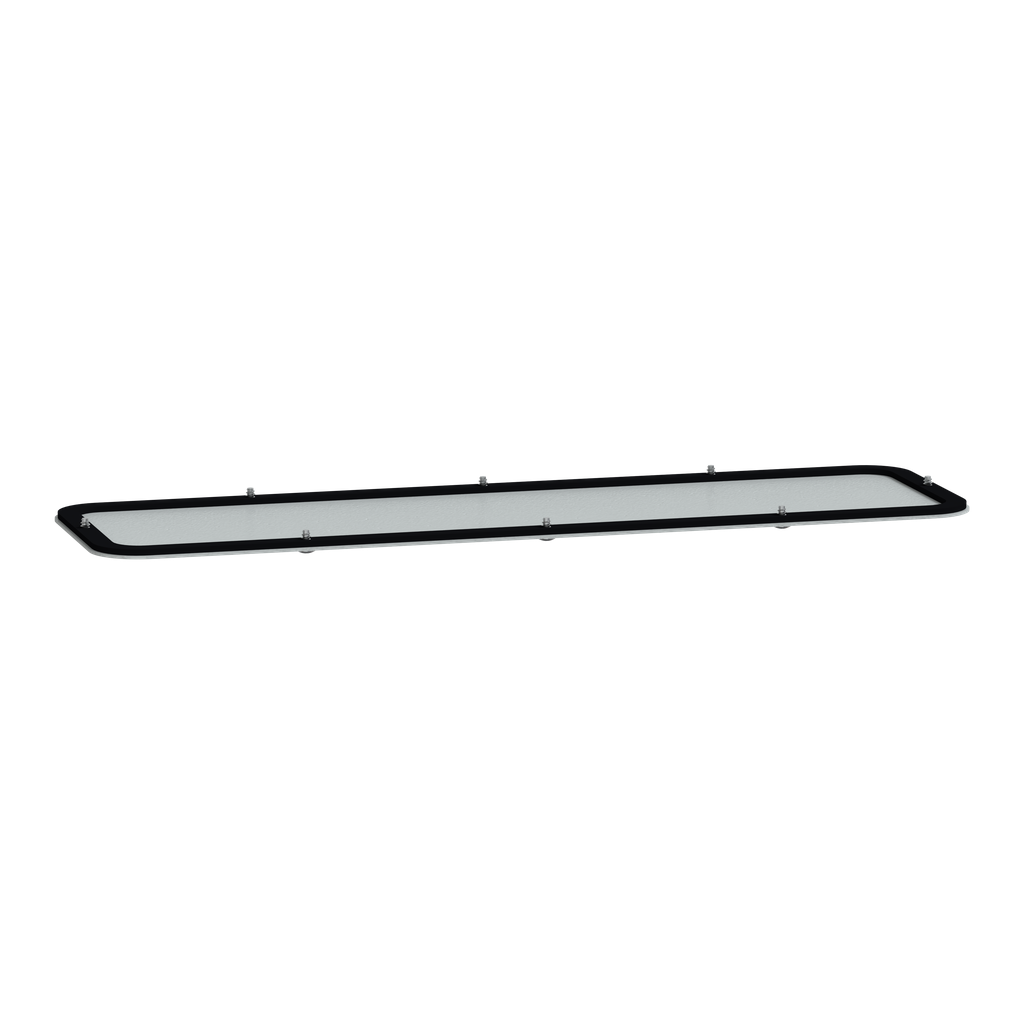

Standard cable gland plate for Spacial S3D/CRNG. L is 445 x W is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Number of cut-out is 45 markings of 25 mm. Steel made, polyethylene (PE) foam for seal. Grey RAL 7035. Fixing elements, 1 plate, 1 separate gasket incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.774 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | cable management accessory |
| Product Or Component Type | cable gland plate |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | enclosure bottom |
| Material |
|
| Quantity Per Set | set of 1 |
| Cable Gland Type | standard |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Surface Finish | epoxy-polyester powder |
| Net Weight | 0.774 kg |
| Depth | 130 mm |
| Thickness | 1.5-2.0 mm |
| Number Of Cut-Out | 45 markings 25 mm |
| Width |
|
| Height |
|
| Color | plate Gray RAL 7035) |
