NSYTLDME

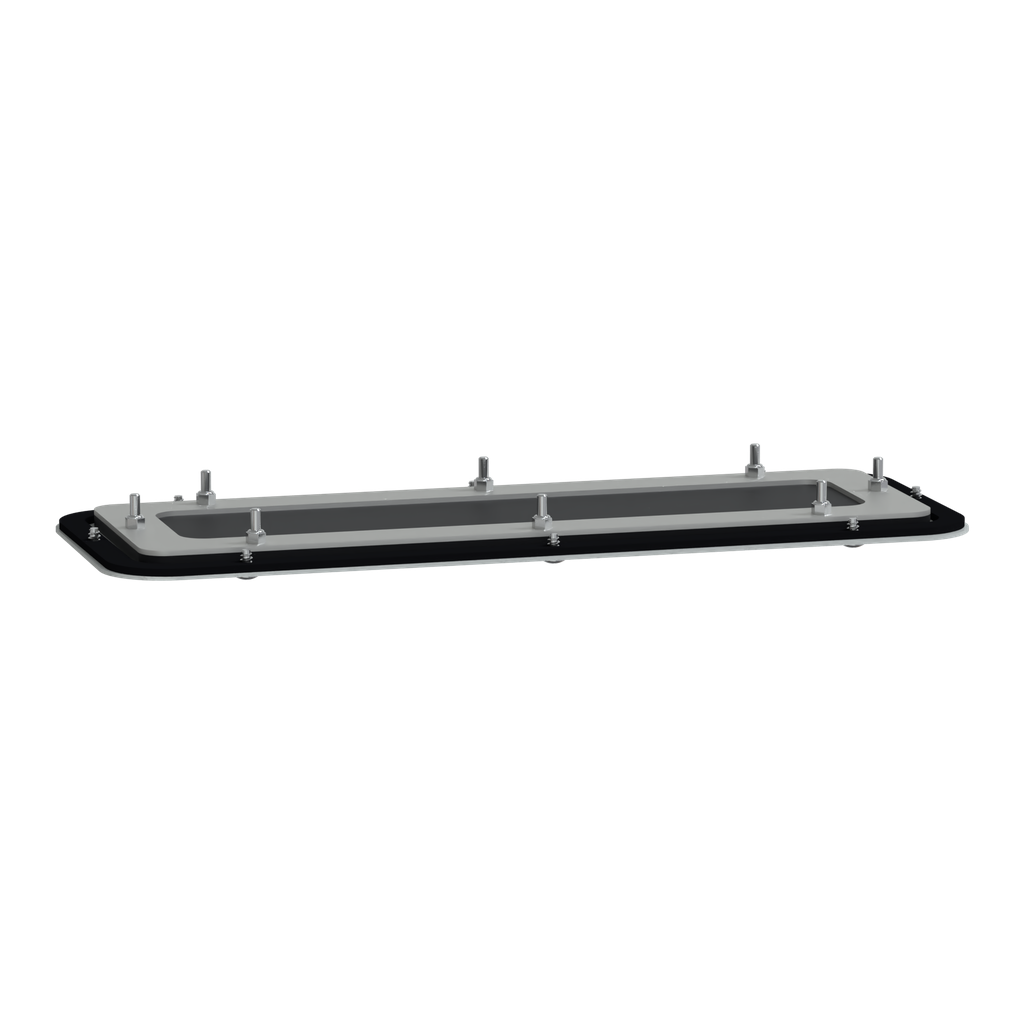

PanelSeT S3D flexicable gland plate with membrane pearcable 278 x 63 mm
Flexicable gland plate for Spacial S3D with membrane pearcable. W is 345 x D is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Pierceable by screwdriver. Number of cut-out is Undrilled. Steel plate, HCE (heat curable elastomer) for membrane. Grey RAL 7035. Membrane, 1 plate incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Weight | 0.73 kg |
| Type Of Gland Plate | membrane |
| Range Compatibility | PanelSeT PanelSeT S3D |
| Accessory / Separate Part Category | cable management accessory |
| Product Or Component Type | flexicable gland plate |
| Cable Entry | without |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | enclosure bottom |
| Material |
|
| Quantity Per Set | set of 1 |
| Cable Gland Type | pierceable by screwdriver |
| Cable Outer Diameter | 10-26 mm |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Surface Finish | epoxy-polyester powder |
| Thickness | 1.5 mm |
| Net Weight | 0.73 kg |
| Depth | 130 mm |
| Number Of Cut-Out | undrilled |
| Cut-Out Dimensions | 278 x 63 mm |
| Width |
|
| Height | 30 mm |
| Color | plate Gray RAL 7035) |
| Warranty | 18 months |
Documents
- PanelSeT S3D - FlexiCable - Instruction Sheet - PanelSeT-S3D-FlexiCable-Instruction-Sheet-ENNA09626-T-05 (pdf)
- Rittal Competitive Cross References Brochure - Rittal+Cross+2-19 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures / Cable Entries / Selection Guide - UEMKG005EN_(web) (pdf)
