NSYTJ5025

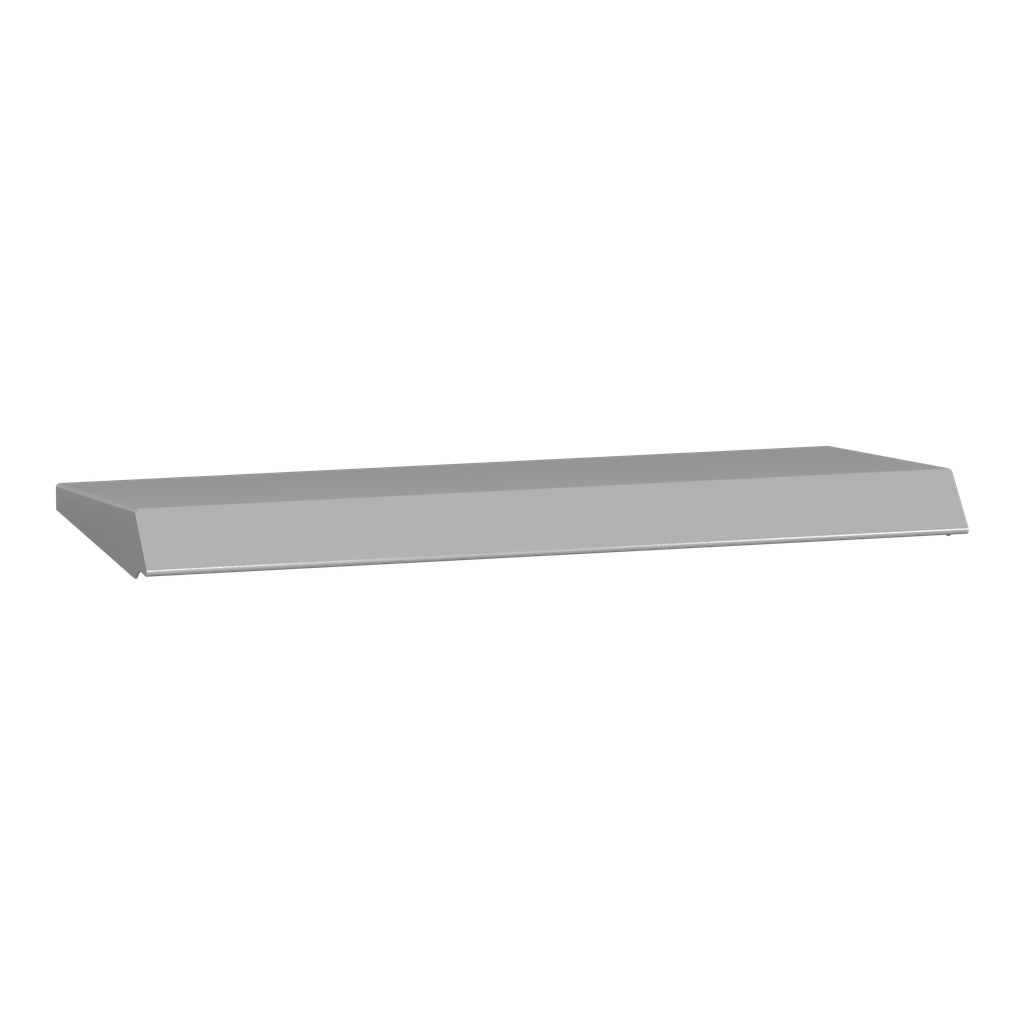

PanelSeT WM enclosure canopy W500xD250 Colour RAL7035.. Fixings supplied.
Specifications
| Country of Origin | Spain |
|---|---|
| Weight | 2.6 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | canopy |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | on top of enclosure |
| Device Application | multi-purpose |
| Mounting Diameter | 8 mm |
| Surface Finish | epoxy-polyester powder |
| Net Weight | 2.6 kg |
| Depth | nominal : 250 mm |
| Fixing Mode | by 4 screws M6 |
| Width |
|
| Height | 42 mm |
| Material | galvanised steel |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- Spacial CRN Canopy - Instruction Sheet - NHA2692900-00 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
