NSYTFPCRN6

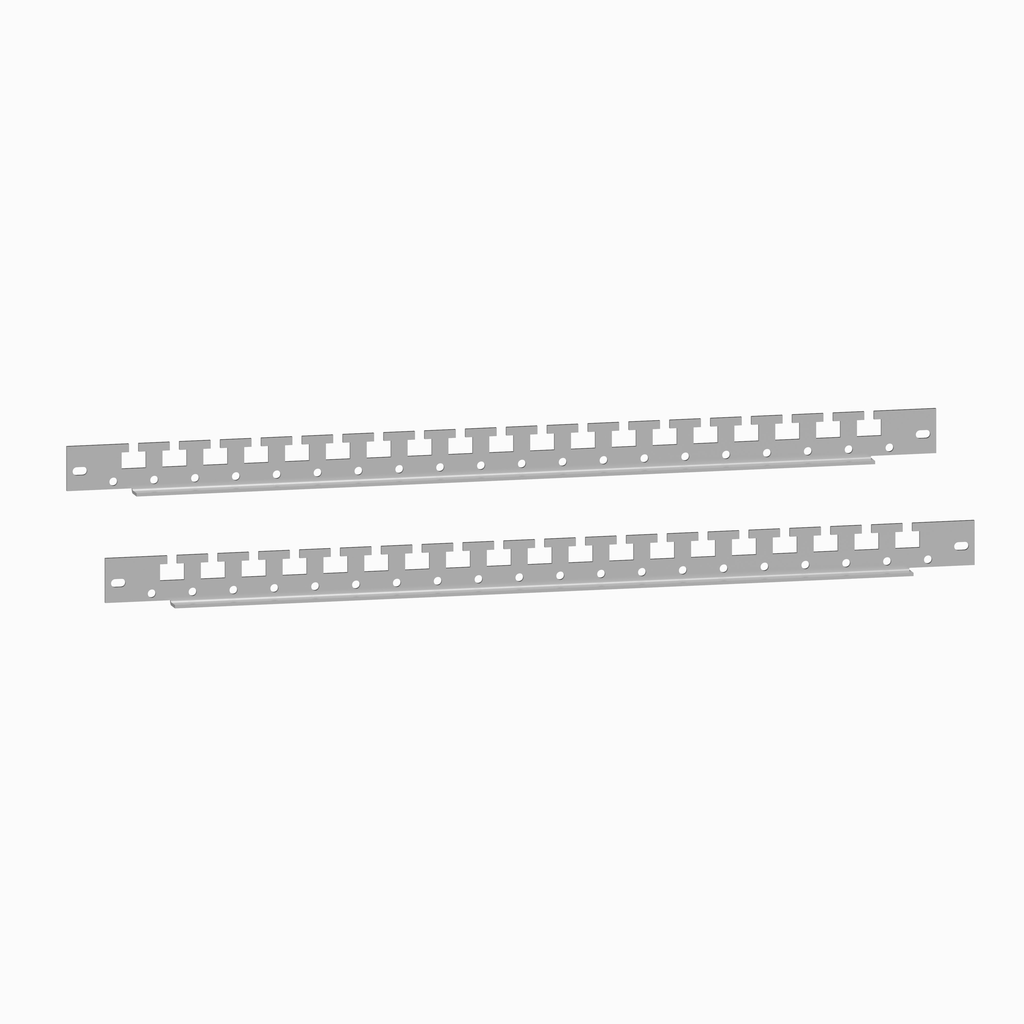

Set of 2 door cross rails for PanelSeT WM enclosure, width 600mm
Specifications
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Country of Origin | France |
| Weight | 0.55 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT S3D, CRN, S3X enclosures |
| Quantity Per Set | set of 1 |
| Product Or Component Type | door cable-guide cross rail |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | PanelSeT |
| Mounting Location | on door reinforcement frame |
| Width |
|
| Height | 30 mm |
| Material | steel |
| Surface Finish | zinc coated |
| Adjustment | at the required height on door reinforcement frame |
| Net Weight | 0.55 kg |
| Depth | 14 mm |
| Fixing Mode | by 2 screws self tapping - on door reinforcement frame |
| Warranty | 18 months |
