NSYTBS342916H
ABS box IP66 IK07 RAL7035 Int.H325W275D160 Ext.H341W291D168 Opaque cover H60

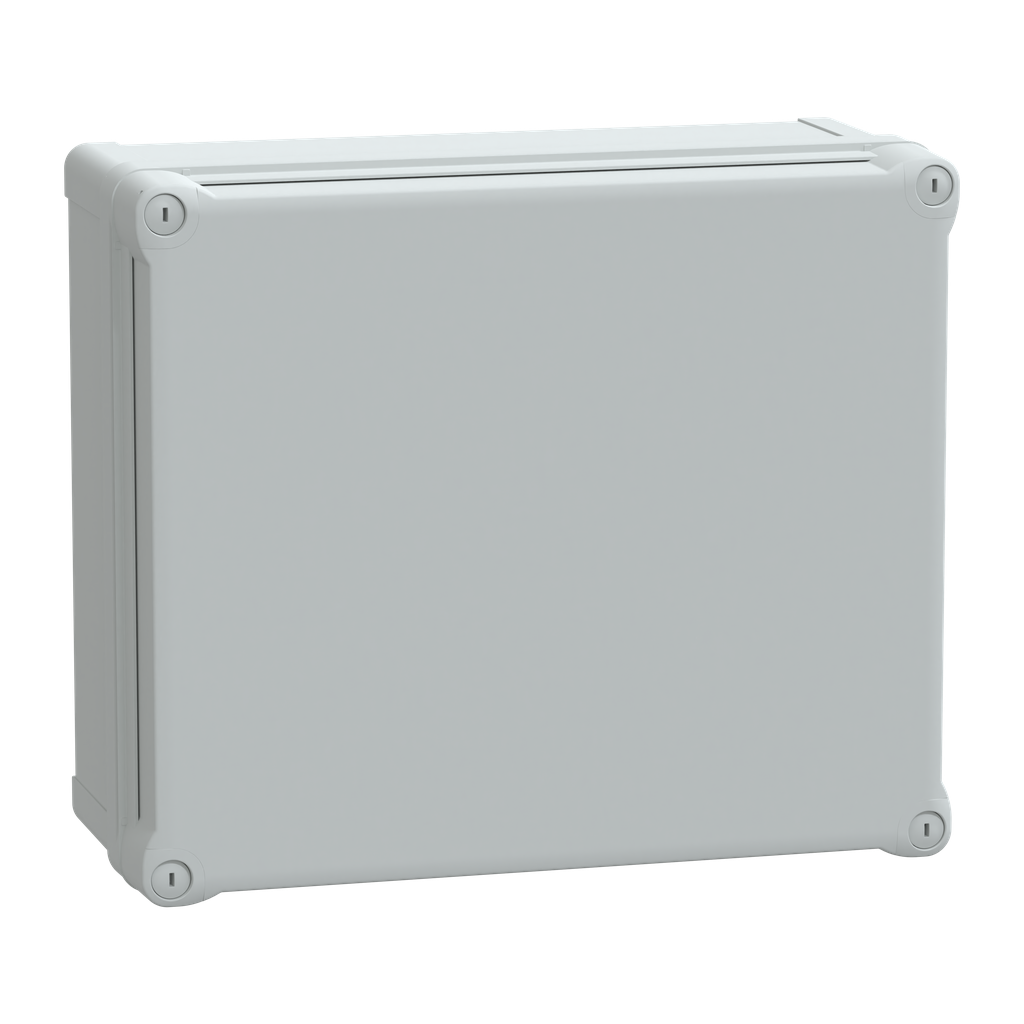

Thalassa TBS industrial ABS box with opaque cover H60. Int is 325 x 275 x 160 mm. Ext is 341 x 291 x 168 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Hungary |
|---|---|
| Weight | 1.66 kg |
| Removable Parts | cover by captive screws |
| Height | 341 mm |
| Product Or Component Type | industrial box |
| Internal Width | 275 mm |
| Internal Height | 325 mm |
| Internal Depth | 160 mm |
| Product Name | Thalassa TBS |
| Lock Type | captive screw flat outside sealed area |
| Device Composition |
|
| Type Of Front Cover | high plain cover |
| Range | Thalassa |
| Body Type | one piece moulded |
| Cover Fixing | plastic screws |
| Enclosure Mounting | wall mounted |
| Width | 291 mm |
| Depth | 168 mm |
| Device Application | multi-purpose |
| Product Certifications | TÜV |
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | IEC 62208 |
| Net Weight | 1.66 kg |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Storage | -15-40 °C |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Fire Resistance | 650 °C IEC 60695-2-11 |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012015EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- Thalassa TBS - ABS Box - Instruction Sheet - EAV5017101 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
