NSYTBS292412HT

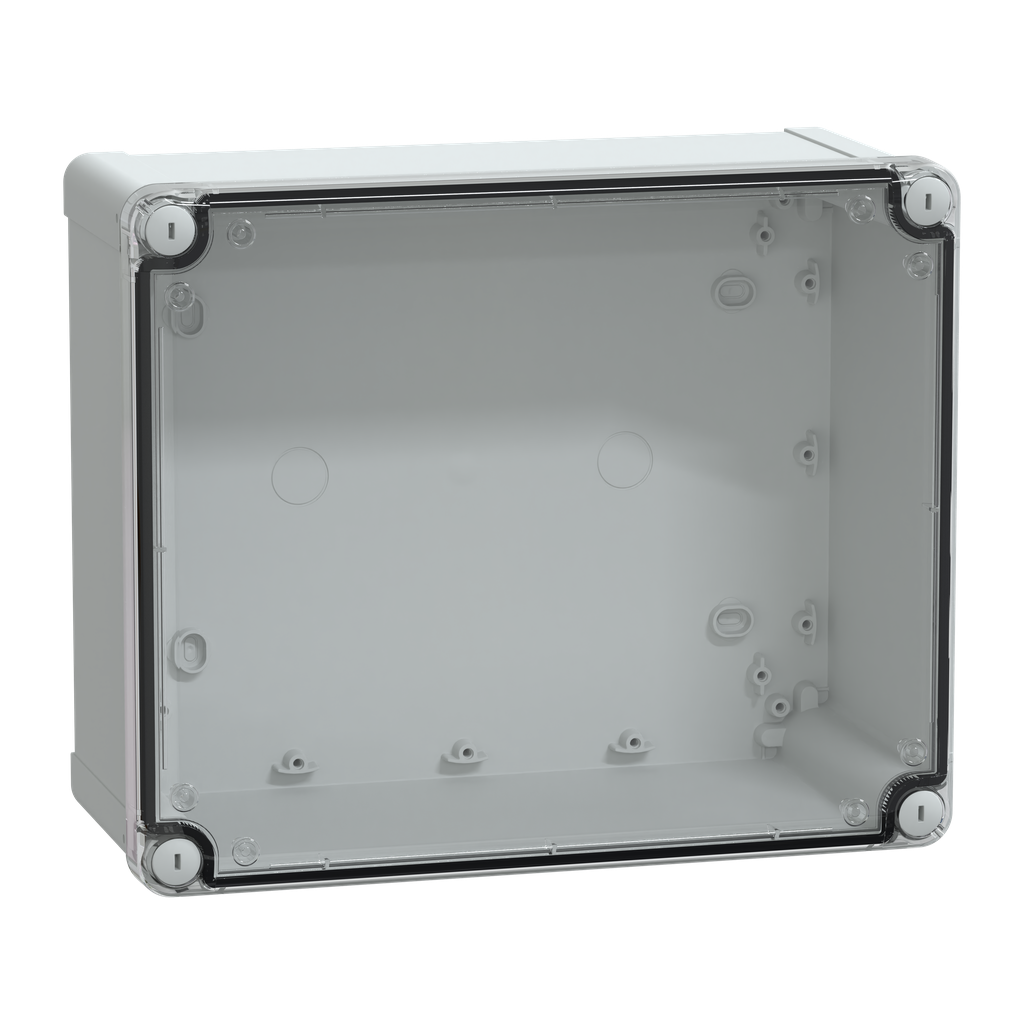

ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Specifications
| Country of Origin | Hungary |
|---|---|
| Weight | 1.16 kg |
| Removable Parts | cover by captive screws |
| Height | 291 mm |
| Product Or Component Type | industrial box |
| Internal Width | 225 mm |
| Internal Height | 275 mm |
| Internal Depth | 120 mm |
| Product Name | Thalassa TBS |
| Lock Type | captive screw flat outside sealed area |
| Device Composition |
|
| Type Of Front Cover | high transparent cover |
| Range | Thalassa |
| Body Type | one piece moulded |
| Cover Fixing | plastic screws |
| Enclosure Mounting | wall mounted |
| Width | 241 mm |
| Depth | 128 mm |
| Device Application | multi-purpose |
| Product Certifications | TÜV |
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | IEC 62208 |
| Net Weight | 1.16 kg |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Storage | -15-40 °C |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Fire Resistance | 650 °C IEC 60695-2-11 |
| Color |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012015EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
