NSYTBP1397T
PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20

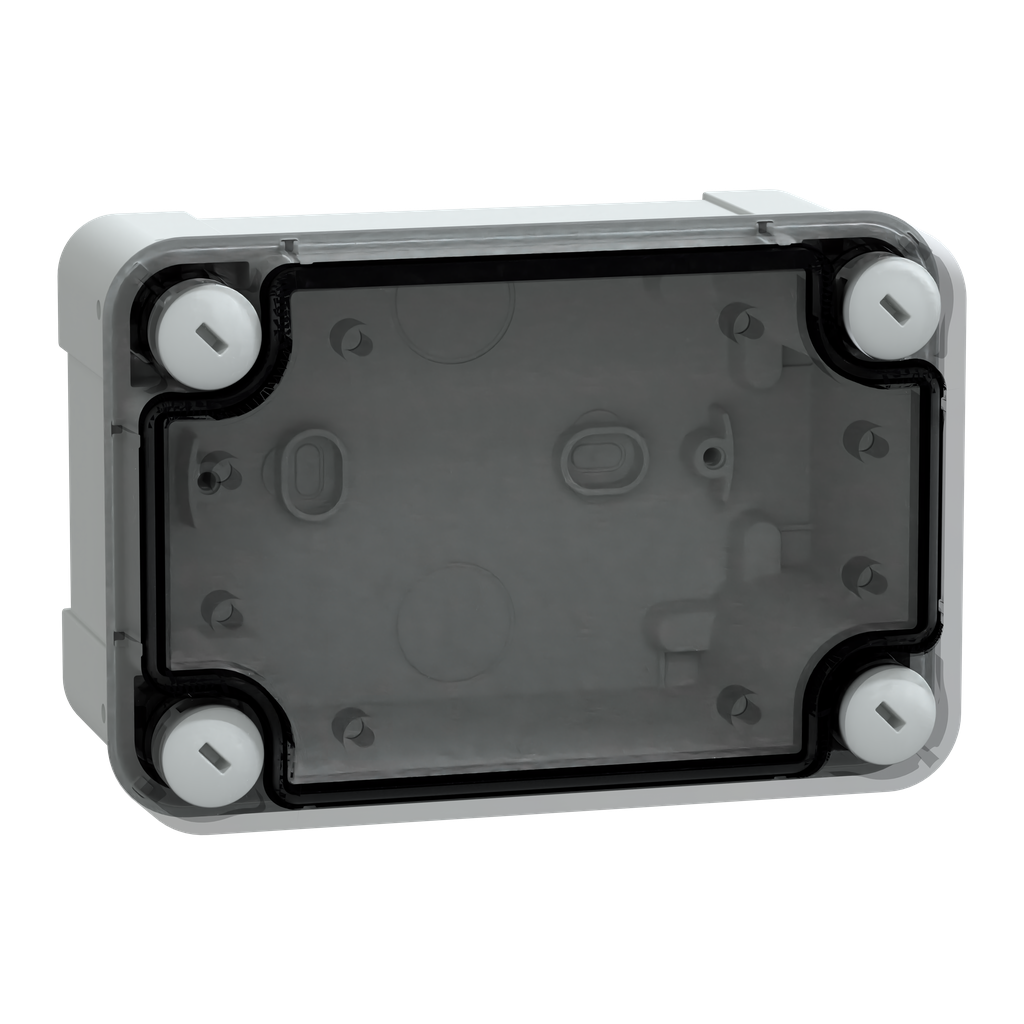

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Removable Parts | cover by captive screws |
|---|---|
| Height | 138 mm |
| Product Or Component Type | industrial box |
| Internal Width | 80 mm |
| Internal Height | 125 mm |
| Internal Depth | 65 mm |
| Product Name | Thalassa TBP |
| Lock Type | captive screw flat outside sealed area |
| Device Composition |
|
| Type Of Front Cover | low transparent cover |
| Range | Thalassa |
| Body Type | one piece moulded |
| Cover Fixing | plastic screws |
| Enclosure Mounting | wall mounted |
| Quantity Per Set | set of 2 |
| Width | 93 mm |
| Depth | 72 mm |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Product Certifications |
|
| Standards |
|
| Net Weight | 0.23 kg |
| Electrical Insulation Class | class II |
| Material | polycarbonate |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Color |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012016EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2012016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Ambient Air Temperature For Operation | -25-80 °C |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Ambient Air Temperature For Storage | -15-60 °C |
| Fire Resistance | 960 °C |
