NSYSTBR4

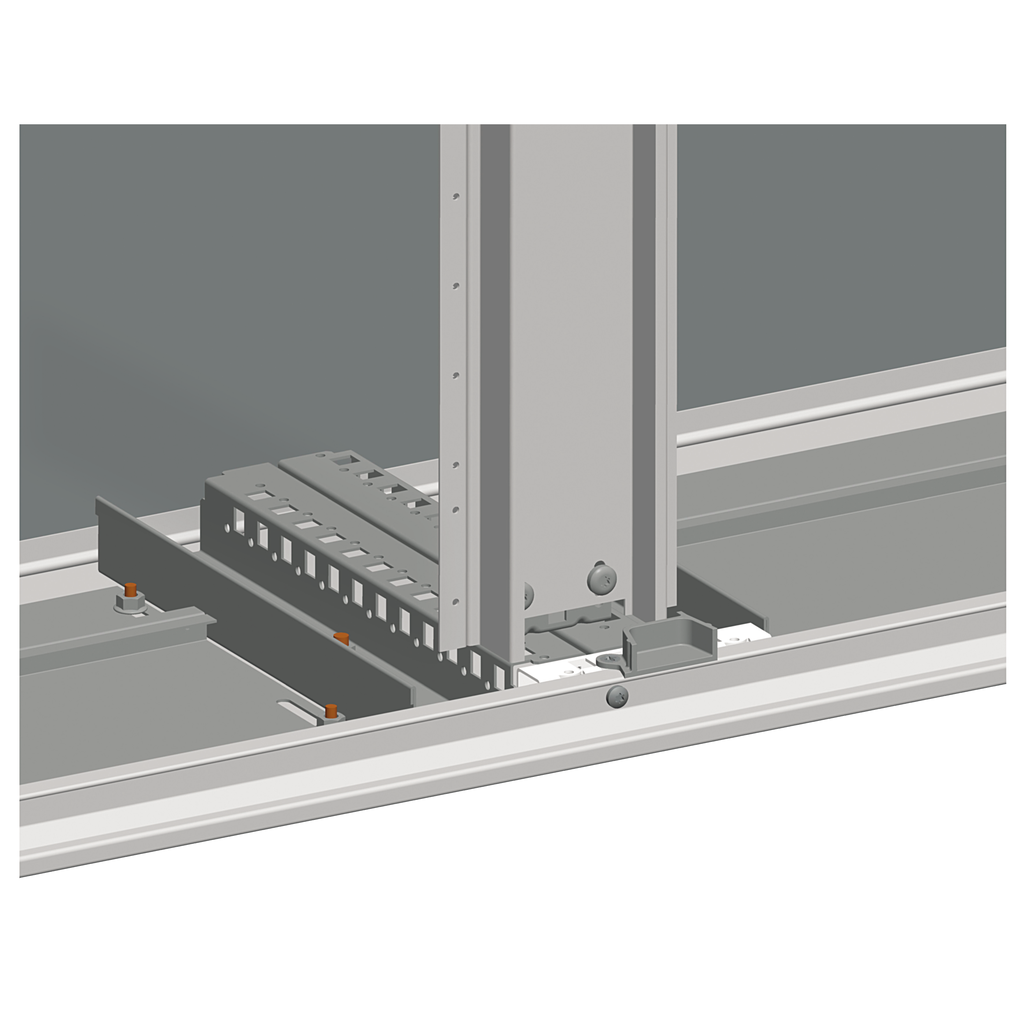

PanelSeT SM top/bottom adjustment rail - depth 400 mm
Spacial SM top/bottom adjustment rail. Depth is 400 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and 2 vertical uprights in 2-door enclosures. Steel made, zinc coated surface finish. 2 rails, fixing elements included.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Surface Finish | zinc coated |
|---|---|
| Depth | nominal : 400 mm |
| Fixing Mode | by fixing element |
| Width | 160 mm |
| Height | 50 mm |
| Country of Origin | Spain |
| Product Destination |
|
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SM |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | adjustment rail |
| Device Composition |
|
| Mounting Location | bottom and top centre of enclosure |
| Material | steel |
| Quantity Per Set | set of 4 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
