NSYSQCR40100

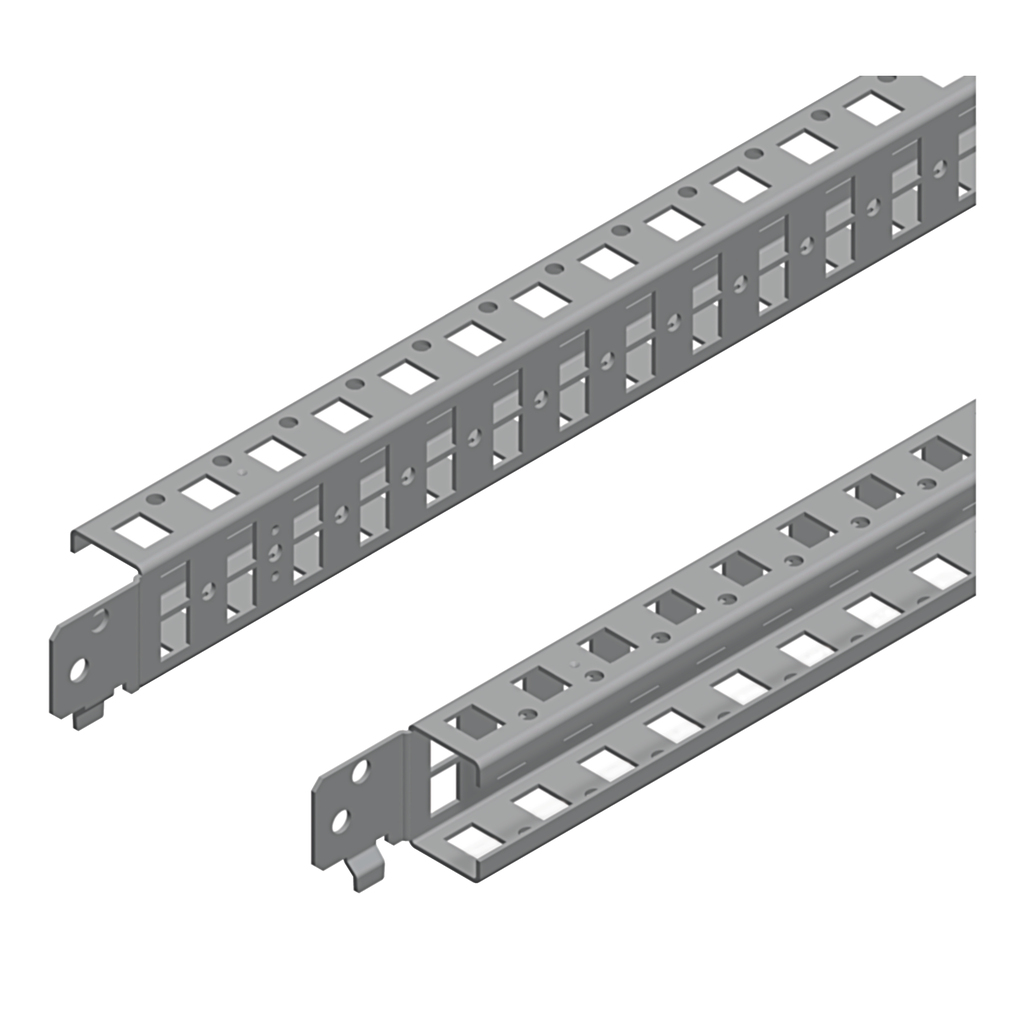

Quick fixing cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H40 W1000mm, 1 row, set of 2
Spacial SF/SM quick fixing cross rails. 39 mm (1 row) x 1000 mm. Simple perforated 25 mm pitch. Does not require fixing support disposes of a wing on each end. In zinc-plated steel and with 1,5 mm thickness. Set of 2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Adjustment | adjustable with a pitch of 25 mm |
|---|---|
| Number Of Horizontal Rows | 1 |
| Maximum Load | 30 kg |
| Range Compatibility |
|
| Surface Finish | galvanized |
| Thickness | 1.5 mm |
| Device Composition |
|
| Depth | 27 mm |
| Fixing Mode |
|
| Mounting Location |
|
| Width | 40 mm |
| Height |
|
| Mounting Support | adaptation profile, on SM enclosures |
| Material | steel |
| Quantity Per Set | set of 1 |
| Country of Origin | India |
| Enclosure Nominal Dimensions | - |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | quick cross rails |
| Range | PanelSeT |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
