NSYSPS4100

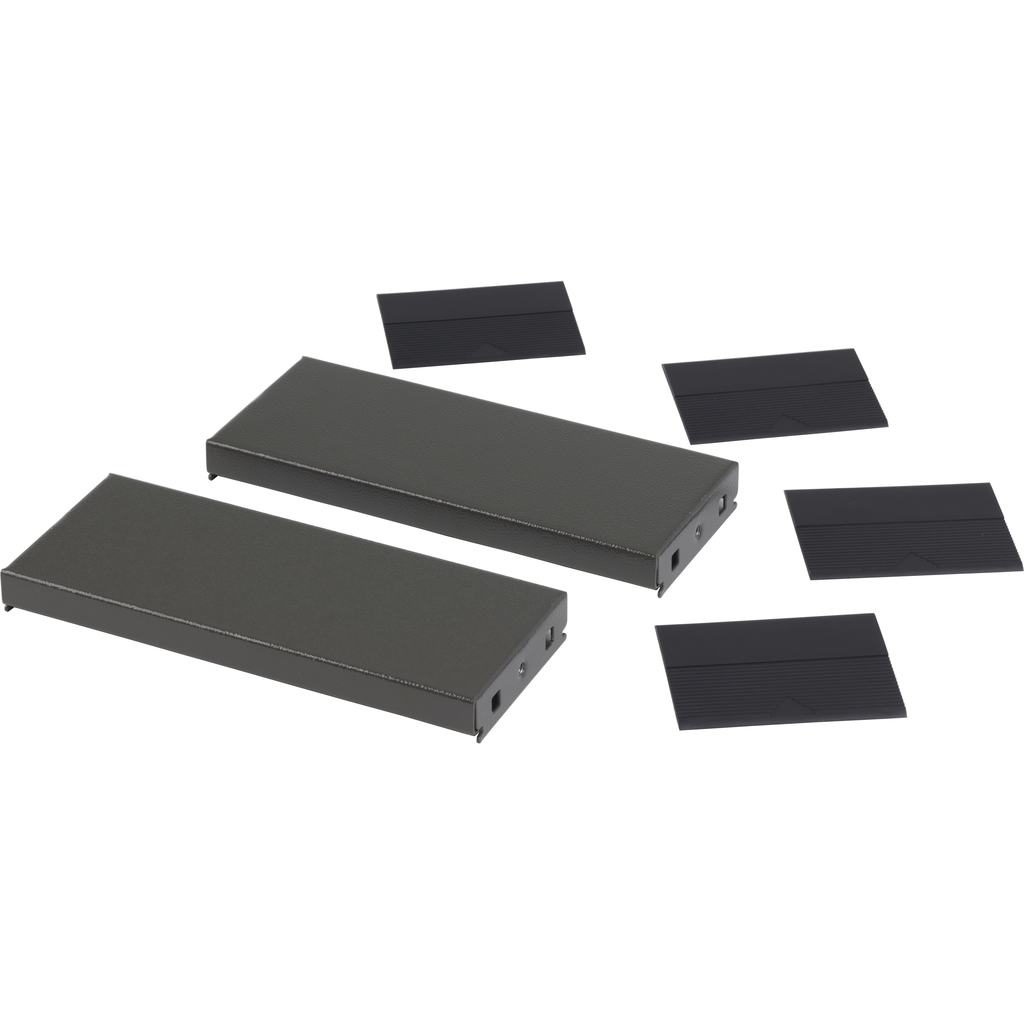

Side panels for the plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure D400mm, set of 2, H100mm
Spacial SF/SM side panel plinth. 99 x 400 mm. Multi-purpose application. Front plinth mounting support. Fixing mode by screws. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10. 2 side panels.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK10 |
|---|---|
| Ip Degree Of Protection | IP20 complete plinth) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by screws |
| Surface Finish | epoxy-polyester powder |
| Width | nominal: 400 mm |
| Height | 100 mm |
| Color | Gray RAL 7022) |
| Country of Origin | Tunisia |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | plinth side panel |
| Range | PanelSeT |
| Device Composition |
|
| Mounting Support | front plinth |
| Device Application | multi-purpose |
Documents
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Universal Enclosures: Section 24 - Digest 179 (2024) - Universal-Enclosures-Digest-Catalog-0100CT2401-SEC-24 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Digest Catalog 28: Universal Enclosures - 0100CT1901_SEC-28 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Spec Sheet
