NSYSPFX12100H

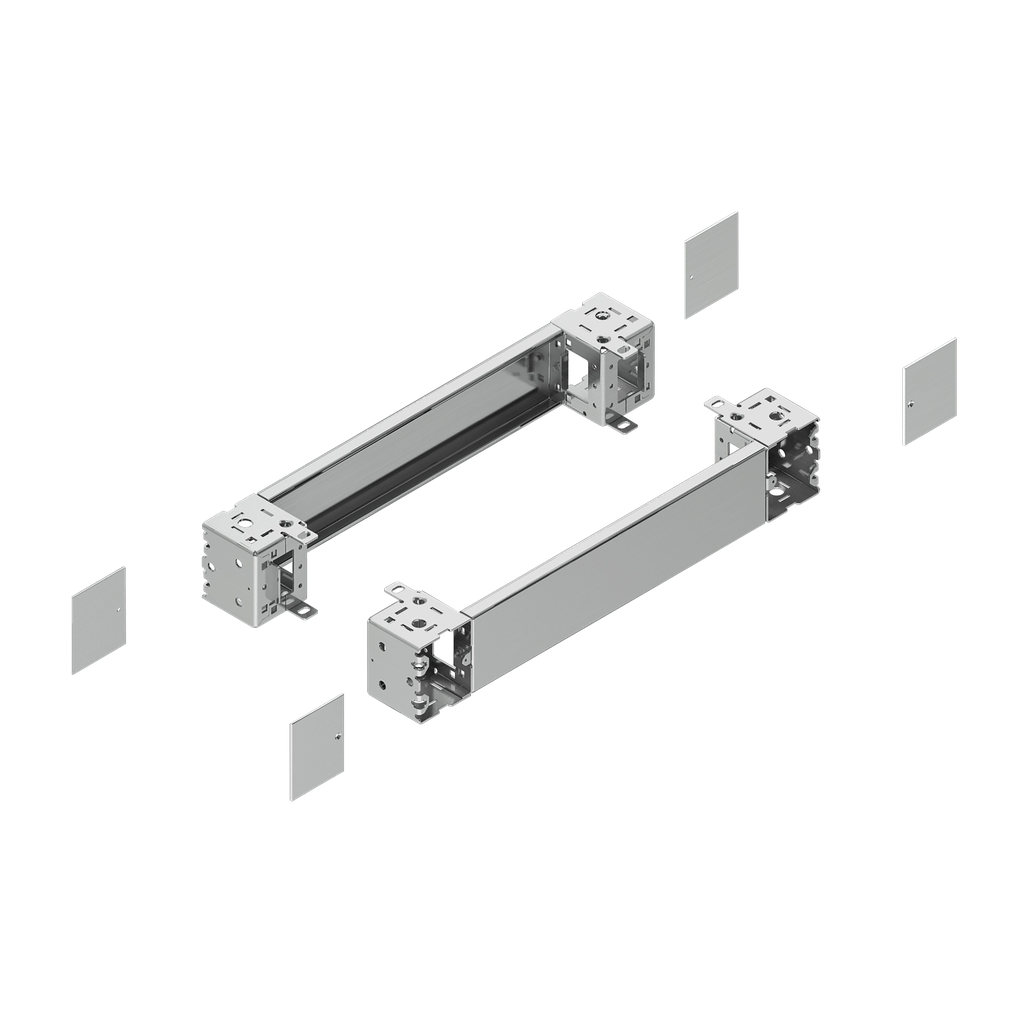

PanelSeT - plain front panel plinth W1200 H100 stainless steel 316L
Specifications
| Fixing Mode | by fixing element - on structure |
|---|---|
| Surface Finish | untreated |
| Net Weight | 6.45 kg |
| Width | nominal: 1200 mm |
| Height | 100 mm |
| Material | stainless steel 316L |
| Country of Origin | India |
| Weight | 6.45 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | plinth front |
| Range | PanelSeT |
| Device Composition |
|
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2107011EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 |
| Ip Degree Of Protection | IP30 complete plinth) |
Documents
- Instruction shhet for staniless steel SFX-SMX plinths - PHA1383001 (pdf)
- Universal Enclosures Brochure - Overview6-page+(1) (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
