NSYSPF6200

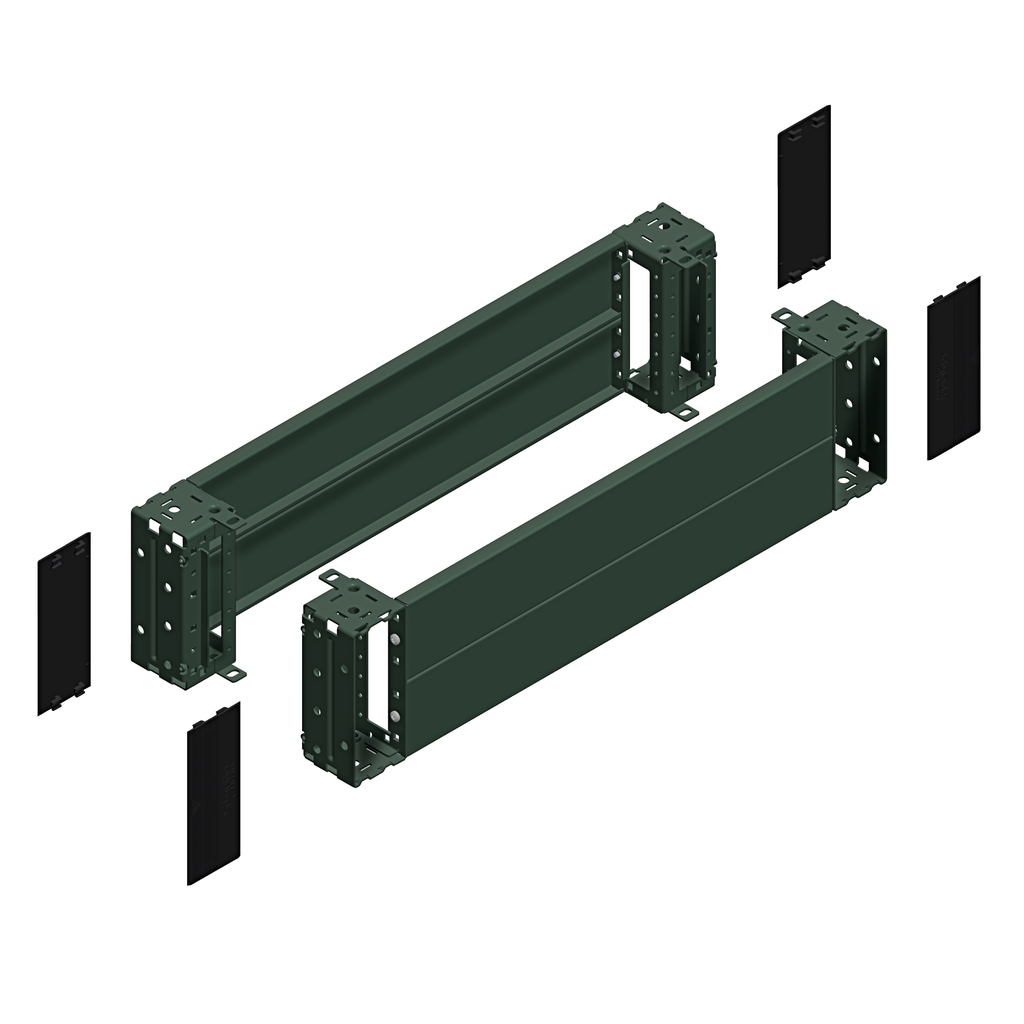

Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W600mm, plinth H200mm
Front plinth for Spacial CRN, S3D, SF, SM, SD. 200 x 600 mm. Multi-purpose, electronic, compartimentalised, pc application. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK10 |
|---|---|
| Ip Degree Of Protection | IP20 complete plinth) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by fixing element - on structure |
| Surface Finish | epoxy-polyester powder |
| Width | nominal: 600 mm |
| Height | 200 mm |
| Color | Gray RAL 7022) |
| Permanent Permissible Load | 1300 kg |
| Country of Origin | France |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | front and rear plinth |
| Range | PanelSeT |
| Device Composition |
|
| Mounting Support | plinth side panels |
| Device Application |
|
