NSYSMXEB

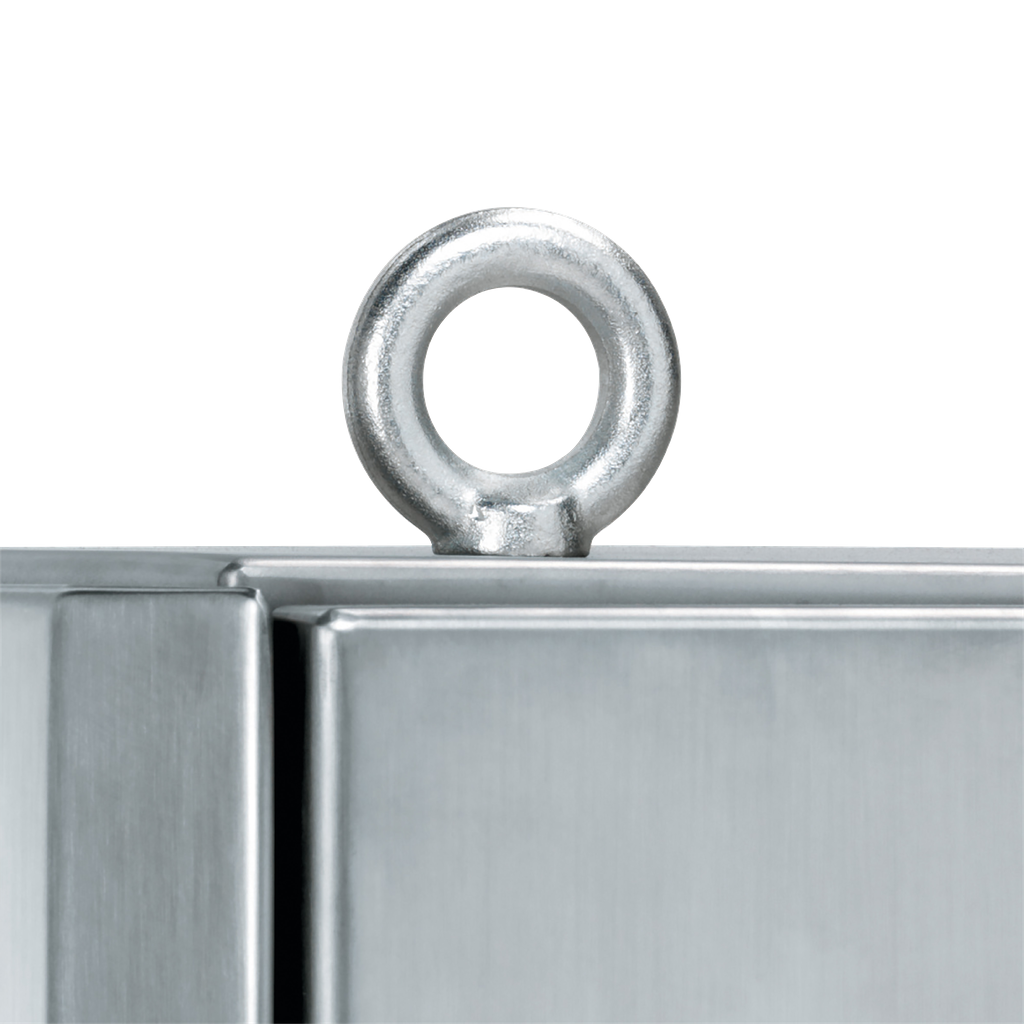

set of 4 Spacial SM M12 lifting eyebolt - stainless steel
Specifications
| Country of Origin | Spain |
|---|---|
| Range Compatibility |
|
| Accessory / Separate Part Category | lifting accessory |
| Product Or Component Type |
|
| Device Composition |
|
| Device Application | multi-purpose |
| Range | PanelSeT |
| Mounting Location | enclosure top |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2107011EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Iso Thread | M12 |
| Width | 54 mm |
| Height | 73.5 mm |
| Material | stainless steel AISI 304 |
| Diameter | 30 mm |
| Fixing Mode | screwed |
| Depth | 30 mm |
| Permanent Permissible Load | 340 kg for 1 eyebolt vertical direction |
Documents
- PanelSeT SMX - Stainless Steel Monobloc Floor-standing Enclosure - Instruction Sheet - PanelSet-SMX-Monobloc-Floor-Standing-Enclosure-Instruction-Sheet-7313860001-01 (pdf)
- Spec Sheet
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
