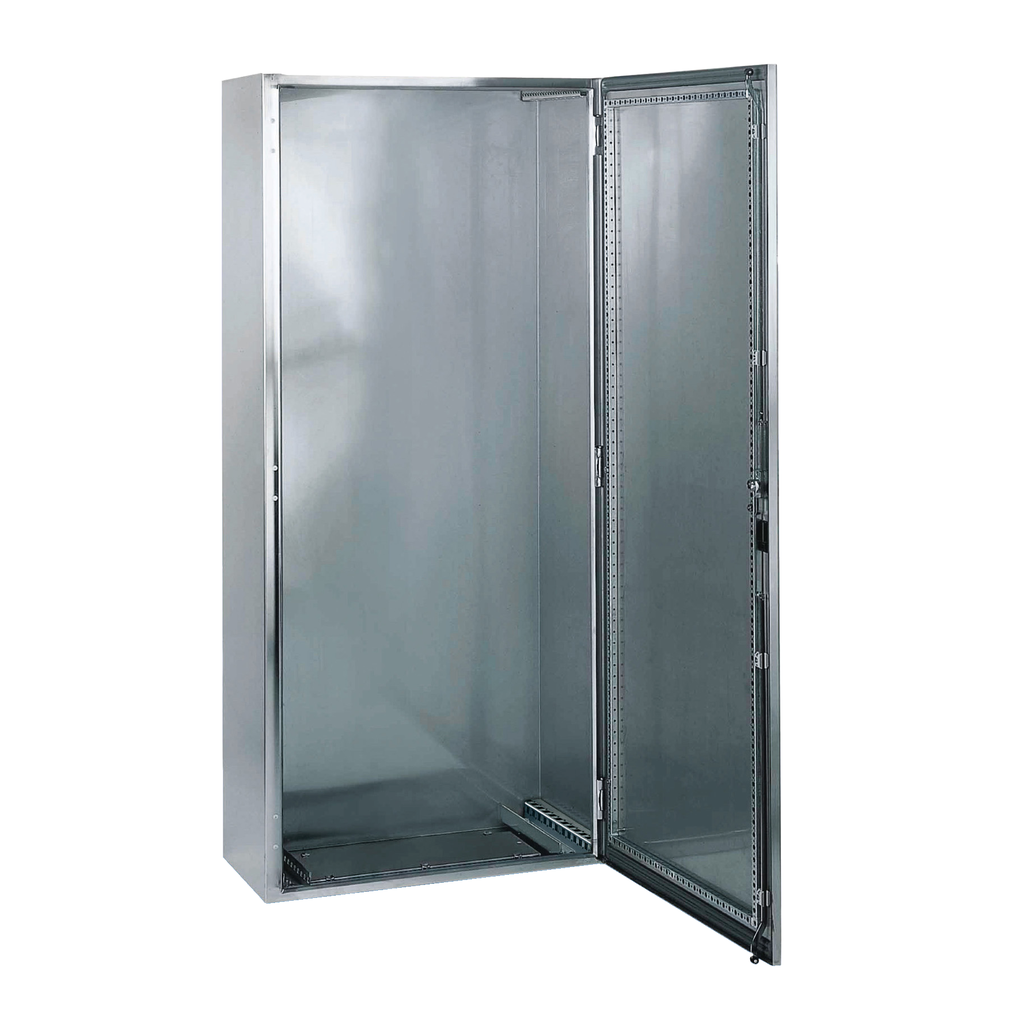

NSYSMX181240H - SMX 316L stainless monobloc enclosure, H1800xW1200xD400mm, Scotch BriteÂ® finish.

NSYSMX181240H

Add to Quote Catalogue

Product Certifications	UL 508 CAN/CSA 22
Ik Degree Of Protection	IK10 IEC 62262
Standards	IEC 62208
Environmental Characteristic	specific hygiene corrosive
Ip Degree Of Protection	IP55 IEC 60529
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2107011EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Accessibility For Operation	front
Removable Parts	door by hinges mounting plate bracket by screws cable gland plate by clips
Type Of Gland Plate	plain
Lock Type	3 points lock, handle with 5 mm double-bar insert
Net Weight	132 kg
Door Opening Side	reversible 120 °)
Number Of Doors	front face 2
Body Type	single piece body folded and welded
Material	handle zamak hinge stainless steel body and door stainless steel 316L
Surface Finish	enclosure Scotch-Brite® brushed handle painted
Door Type	Solid
Mounting Plate Description	without mounting plate
Country of Origin	Bulgaria
Width	1200 mm
Height	1800 mm
Weight	132 kg
Installation Accessory Type	floor-standing
Product Or Component Type	compact enclosure
Product Name	PanelSeT SMX
Device Composition	1 body 2 door 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket
Enclosure Nominal Height	1800 mm
Range	PanelSeT
Enclosure Nominal Depth	400 mm
Device Application	multi-purpose
Enclosure Nominal Width	1200 mm
