NSYSMPSE12

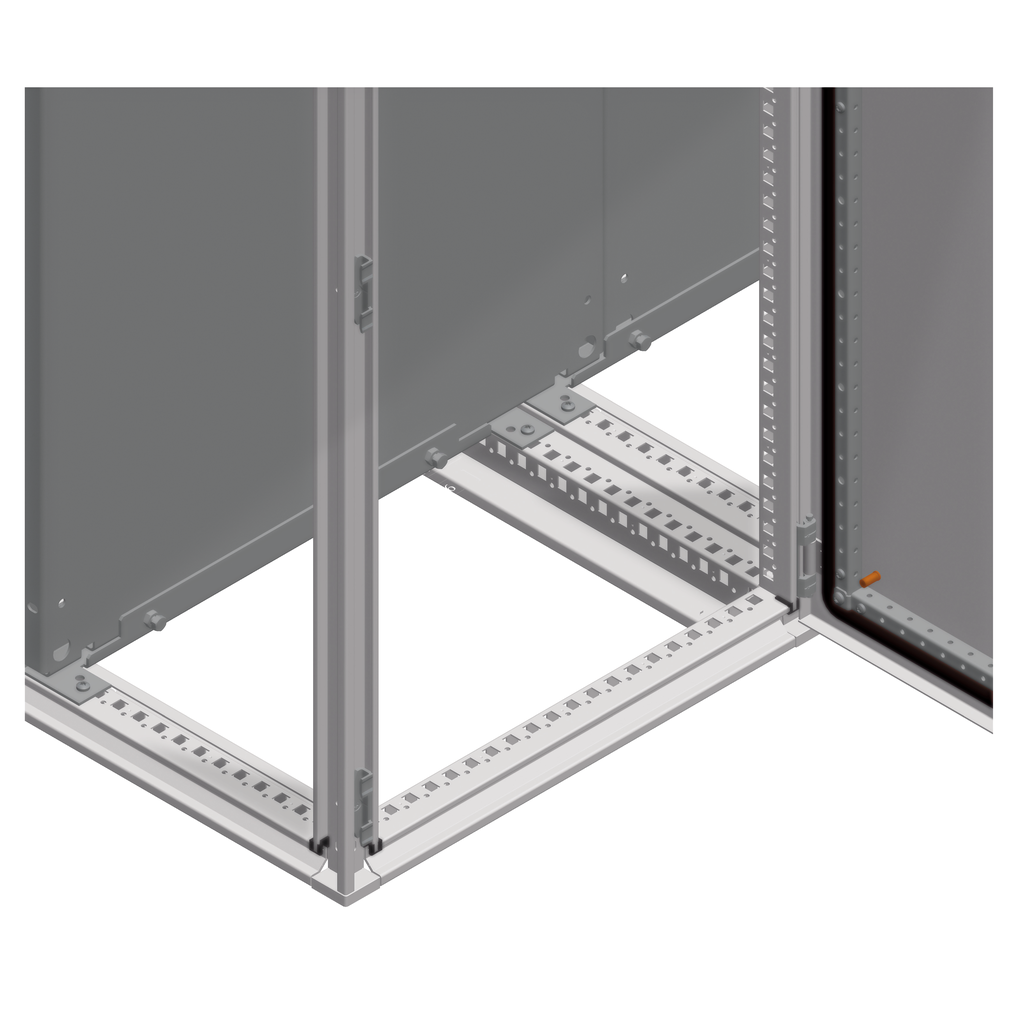

Side entry rails for the mounting plate, PanelSeT SFN, PanelSeT SF, W1200mm , set of 2
Spacial SF side entry rail - width 1200 mm. Enclosure width is 1200 mm. Multi-purpose mounting accessory. Mounting on bottom of enclosure, in width. Destined for mounting plates in coupled enclosures. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. 2 rails and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Product Destination | mounting plates in coupled enclosures |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SF |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition |
|
| Mounting Location | bottom of enclosure, in width |
| Material | steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Adjustment | adjustable in depth every 25 mm |
| Surface Finish | zinc coated |
| Fixing Mode | by fixing element |
| Width | nominal: 1200 mm |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
