NSYSMHR8
PanelSeT SM horizontal adaptation profiles - 800 mm

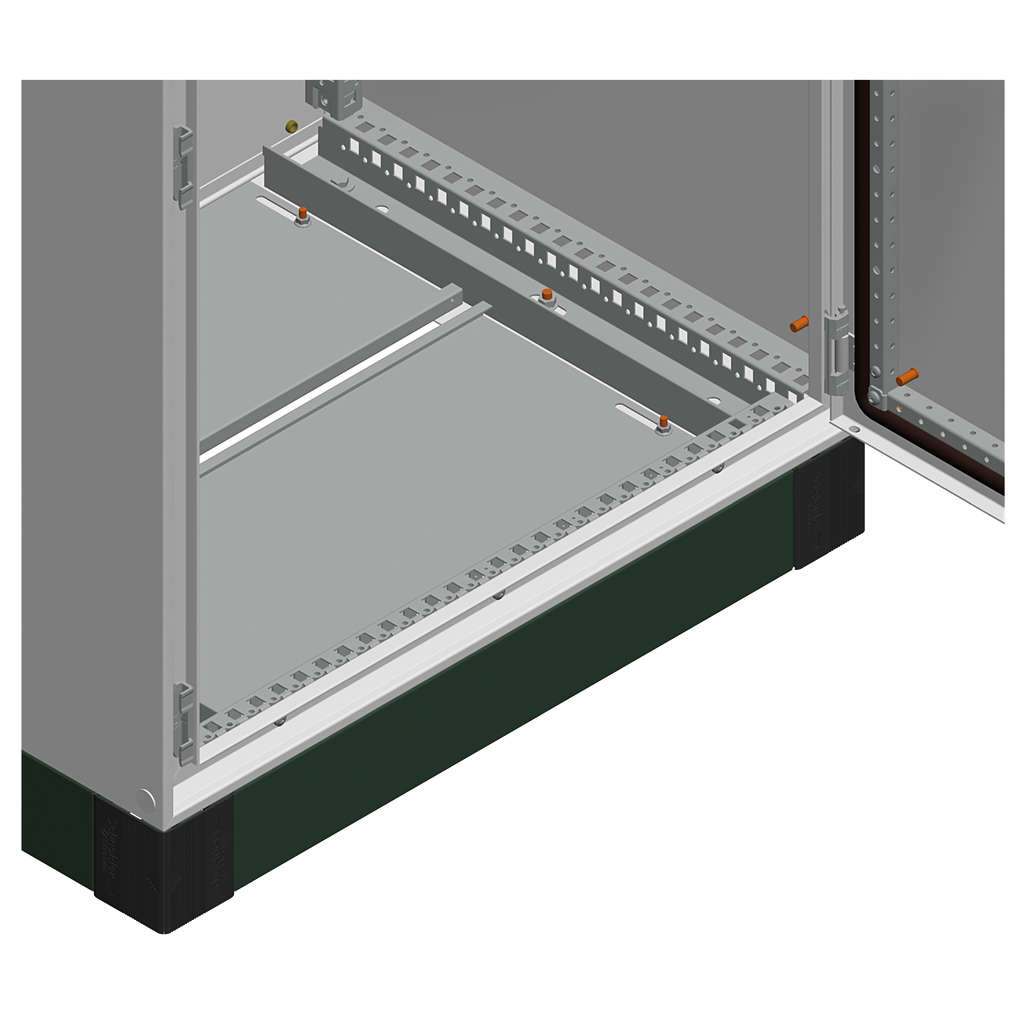

Spacial SM horizontal adaptation profiles. 800 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Egypt |
|---|---|
| Enclosure Nominal Dimensions | - |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | adaptation profile |
| Range | PanelSeT |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Range Compatibility | PanelSeT PanelSeT SM |
| Surface Finish | zinc coated |
| Thickness | 1.5 mm |
| Device Composition |
|
| Depth | 42 mm |
| Fixing Mode | by screws - on front fixing point |
| Mounting Location | top and bottom front of enclosure |
| Installation Direction | horizontal |
| Width | real: 580 mm |
| Height | 24.5 mm |
| Material | steel |
| Quantity Per Set | set of 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
