NSYSMDR

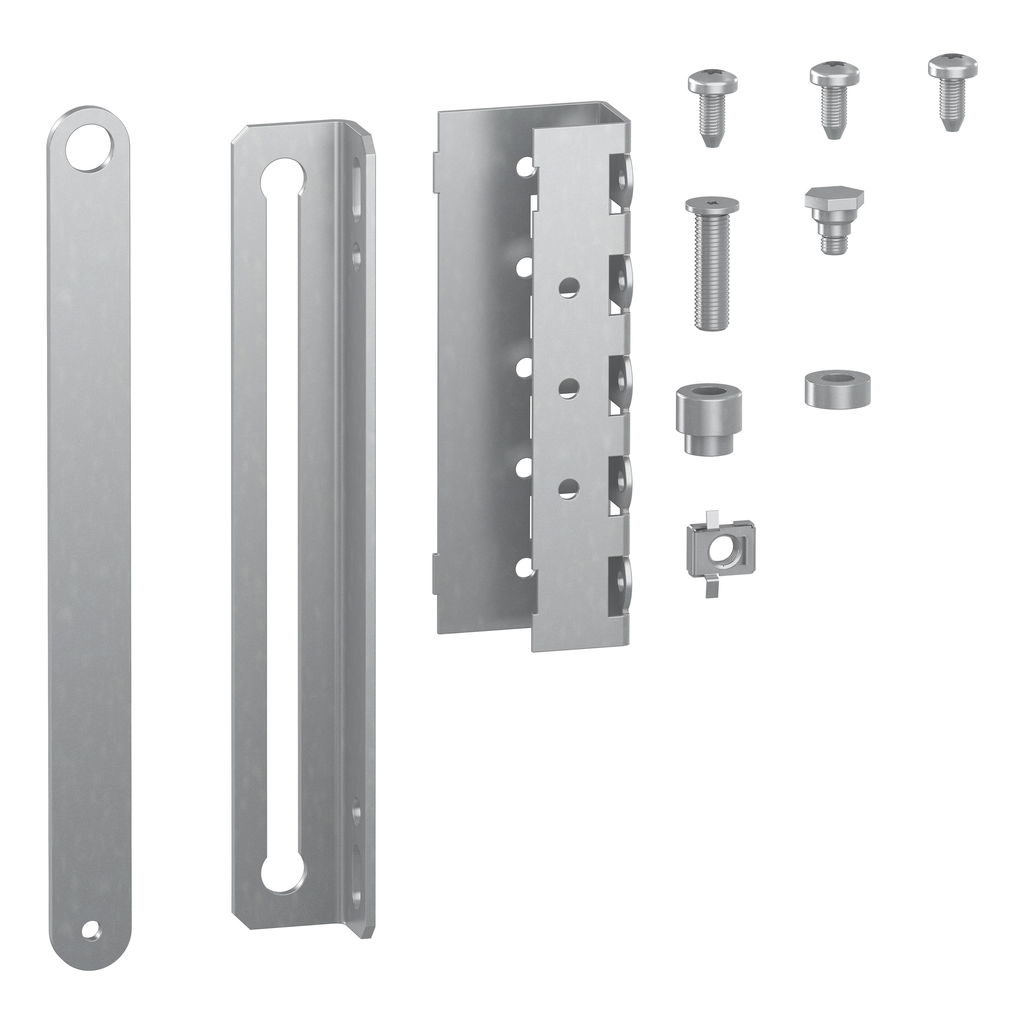

PanelSeT SM mechanical door stop
Specifications
| Fixing Mode | by fixing element - on front frame of enclosure |
|---|---|
| Enclosure/Cubicle Width | > 400 mm |
| Operating Angle | 105 ° |
| Opening Mechanism | mechanical |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT SM enclosure |
| Product Or Component Type | door retainer |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | door and enclosure |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Warranty | 18 months |
Documents
- PanelSeT SFN/SM - Mechanical Door Stop - Instruction Sheet - PanelSeT_SFN_SM_Mechanical_Door_Stop_IS_PHA3957701-02 (pdf)
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spec Sheet
