NSYSM2016602D

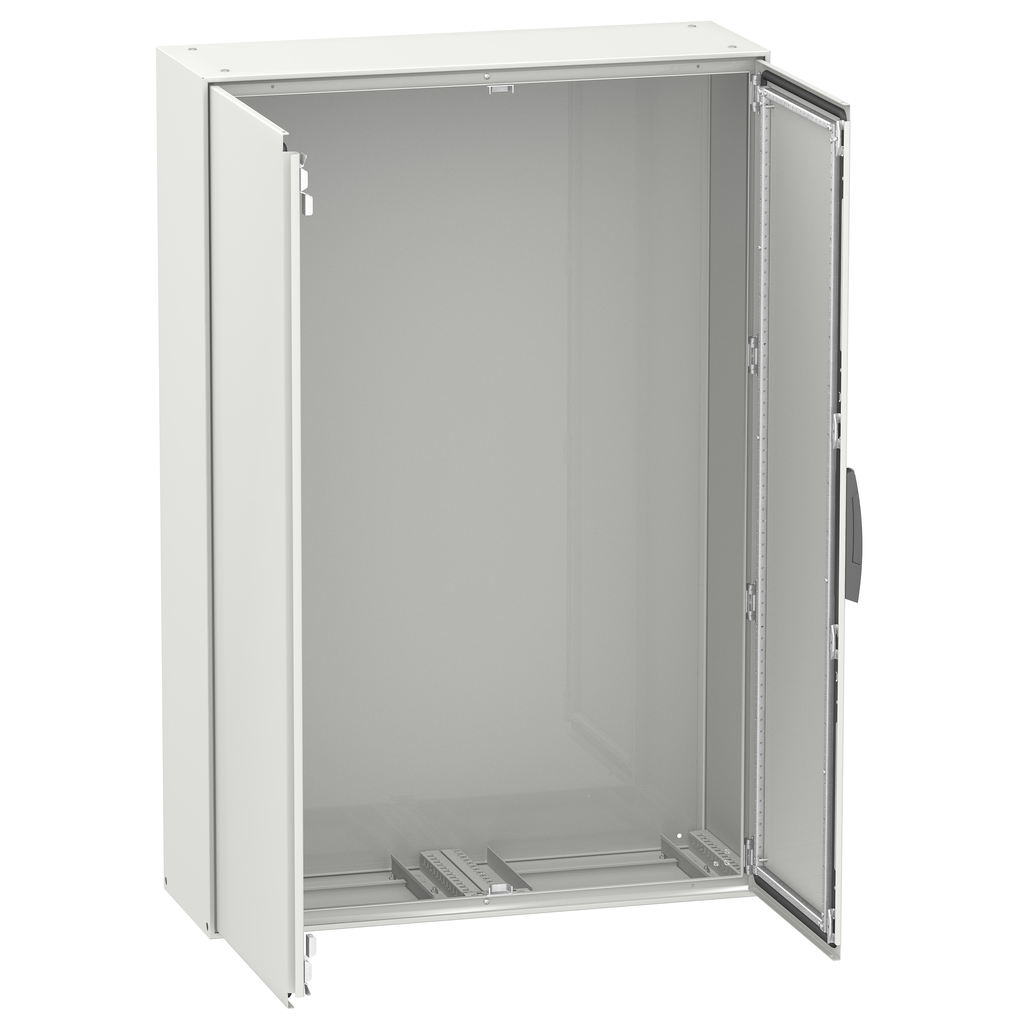

PanelSeT SM compact enclosure without mounting plate - 2000x1600x600 mm
Specifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK10 IEC 62262 |
| Standards | IEC 62208 |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessibility For Operation | front |
| Type Of Gland Plate | standard |
| Lock Type | 4 points lock, handle with 5 mm double bar insert |
| Net Weight | 191 kg |
| Door Opening Side |
|
| Number Of Doors | front 2 |
| Body Type |
|
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Cable Entry | 1 entry |
| Color |
|
| Door Type | Solid |
| Mounting Plate Description | without mounting plate |
| Country of Origin | Spain |
| Width | 1600 mm |
| Height | 2000 mm |
| Weight | 191 kg |
| Removable Parts |
|
| Installation Accessory Type | floor-standing |
| Product Or Component Type | compact enclosure |
| Product Name | PanelSeT SM |
| Device Composition |
|
| Enclosure Nominal Height | 2000 mm |
| Range | PanelSeT |
| Enclosure Nominal Depth | 600 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 1600 mm |
