NSYSLCR60

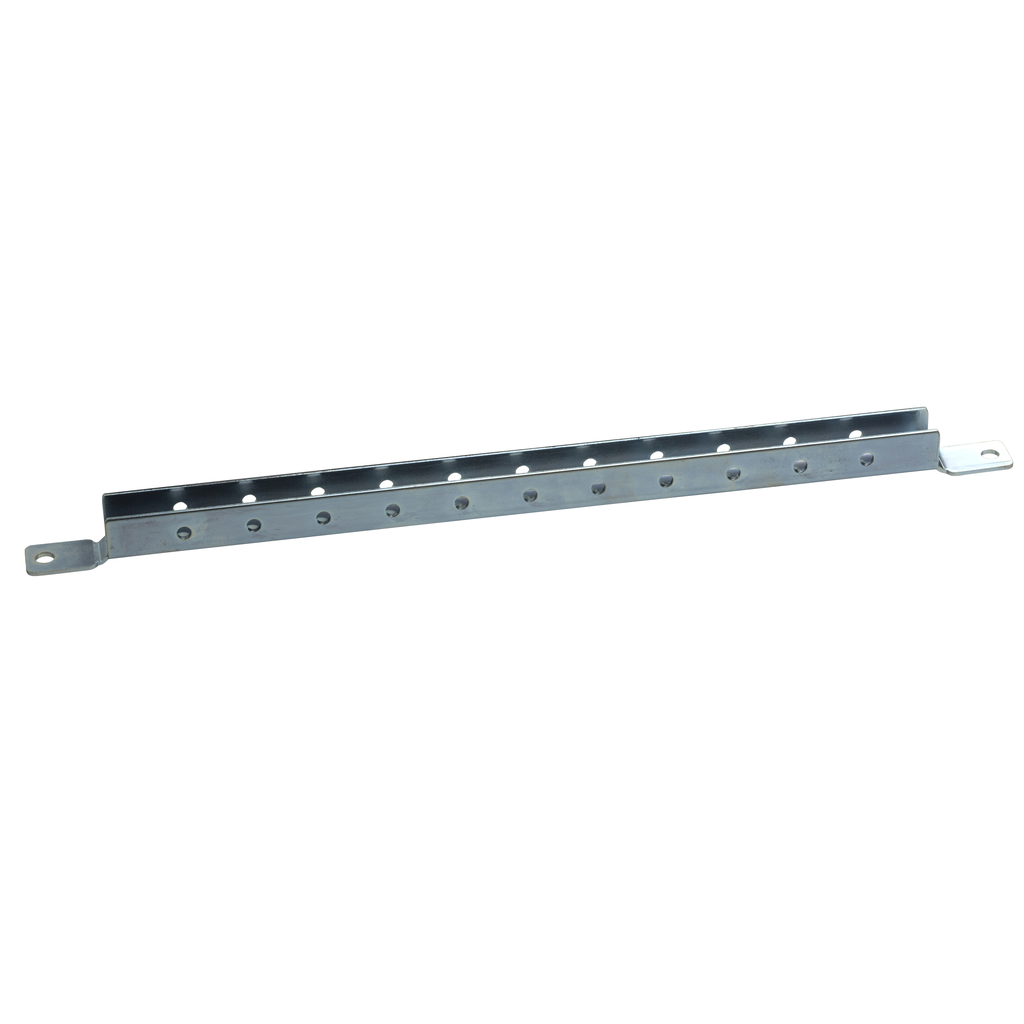

Light cross rails, PanelSeT SFN, Spacial SF, Spacial SM, W600mm, set of 2
Spacial SF/SM light cross rails. 599 x 600 mm. Equipped with a row of 5.2 mm drillings on a 25 mm pitch. Allows fixation with M6 self-tapping screws. In zinc-plated steel, thickness 2 mm. For enclosures D600 mm. 2 cross rails.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Adjustment | adjustable with a pitch of 25 mm |
|---|---|
| Number Of Horizontal Rows | 1 |
| Range Compatibility |
|
| Surface Finish | zinc coated |
| Device Composition |
|
| Depth | 18.6 mm |
| Fixing Mode | by screws M6 self tapping |
| Mounting Location |
|
| Width |
|
| Height | 30 mm |
| Mounting Support | adaptation profile, on SM enclosures |
| Material | steel |
| Quantity Per Set | set of 1 |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - W: 600 mm |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | light cross rail |
| Range | PanelSeT |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
