NSYSICR9040

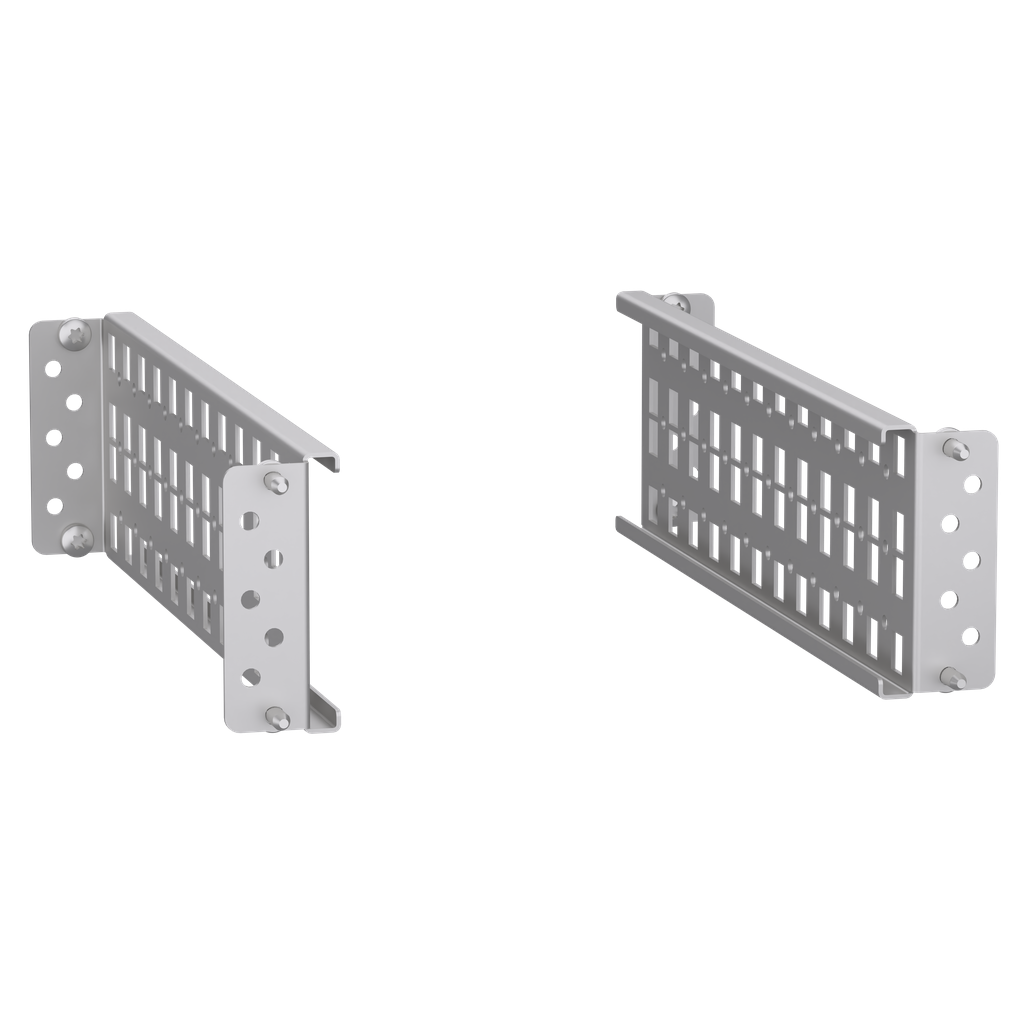

Integrated cross rails, PanelSeT SFN, Spacial SF, H90 W400mm, set of 2
Specifications
| Adjustment | adjustable with a pitch of 25 mm |
|---|---|
| Number Of Horizontal Rows | 3 |
| Maximum Load | 120 kg |
| Range Compatibility |
|
| Thickness | 1.5 mm |
| Device Composition |
|
| Depth | 12 mm |
| Fixing Mode | by screws |
| Mounting Location | on structure of enclosure |
| Width |
|
| Height | 90 mm |
| Mounting Support | upright |
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Country of Origin | France |
| Enclosure Nominal Dimensions | - |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | cross rail |
| Range | PanelSeT |
| Product Specific Application | 30 mm additional space on each fixation side (a total of 60 mm) |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
