NSYSICR6580

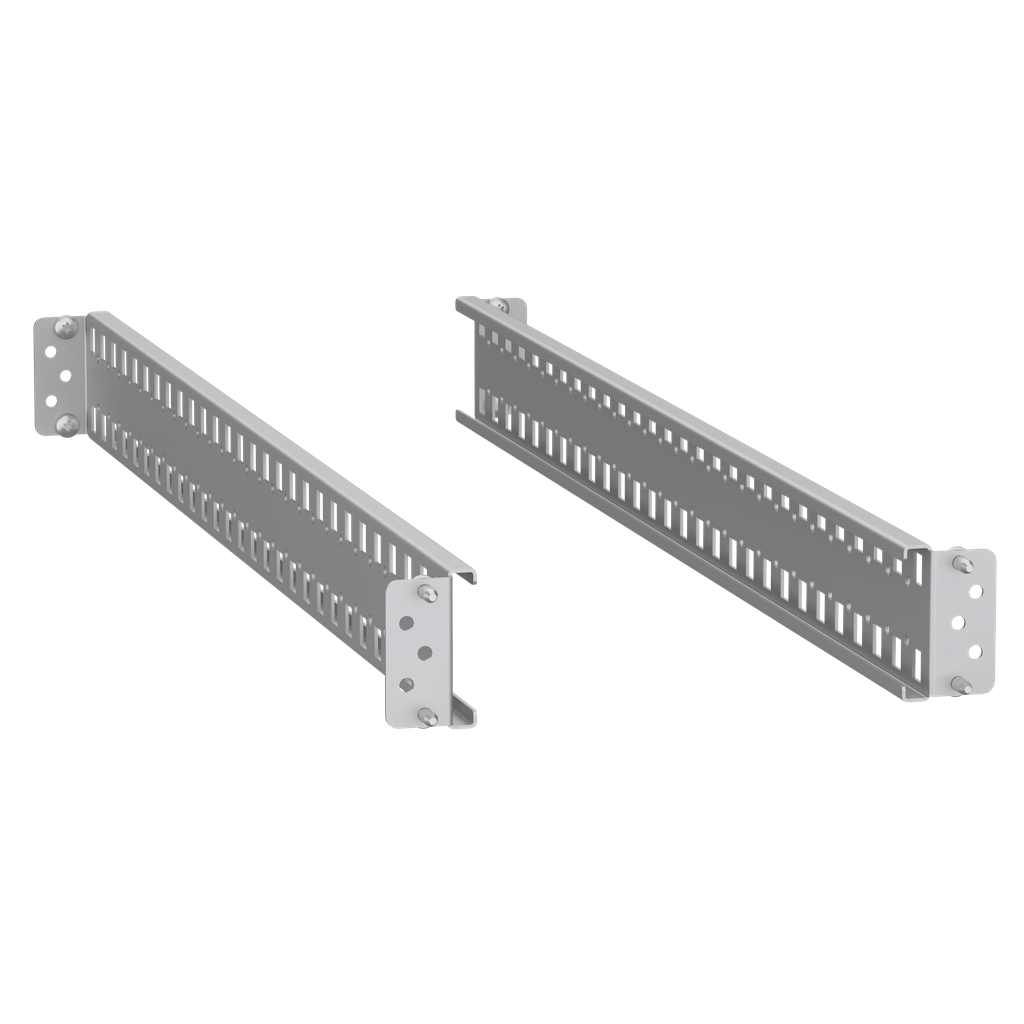

Integrated cross rails, PanelSeT SFN, Spacial SF, H65 W800mm, set of 2
Specifications
| Country of Origin | France |
|---|---|
| Enclosure Nominal Dimensions | - |
| Product Specific Application | 30 mm additional space on each fixation side (a total of 60 mm) |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | cross rail |
| Device Application | multi-purpose |
| Range | PanelSeT |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Adjustment | adjustable with a pitch of 25 mm |
| Number Of Horizontal Rows | 1 |
| Width |
|
| Height | 65 mm |
| Maximum Load | 70 kg |
| Mounting Support | upright |
| Range Compatibility |
|
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Thickness | 1.5 mm |
| Device Composition |
|
| Depth | 12 mm |
| Fixing Mode | by screws |
| Mounting Location | on structure of enclosure |
Documents
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- PanelSeT SFN (Assembled Supply) and Main Accessories – Instruction Sheet - PanelSeT-SFN-IS-PKR3506801-02 (pdf)
- Spec Sheet
