NSYSFPB

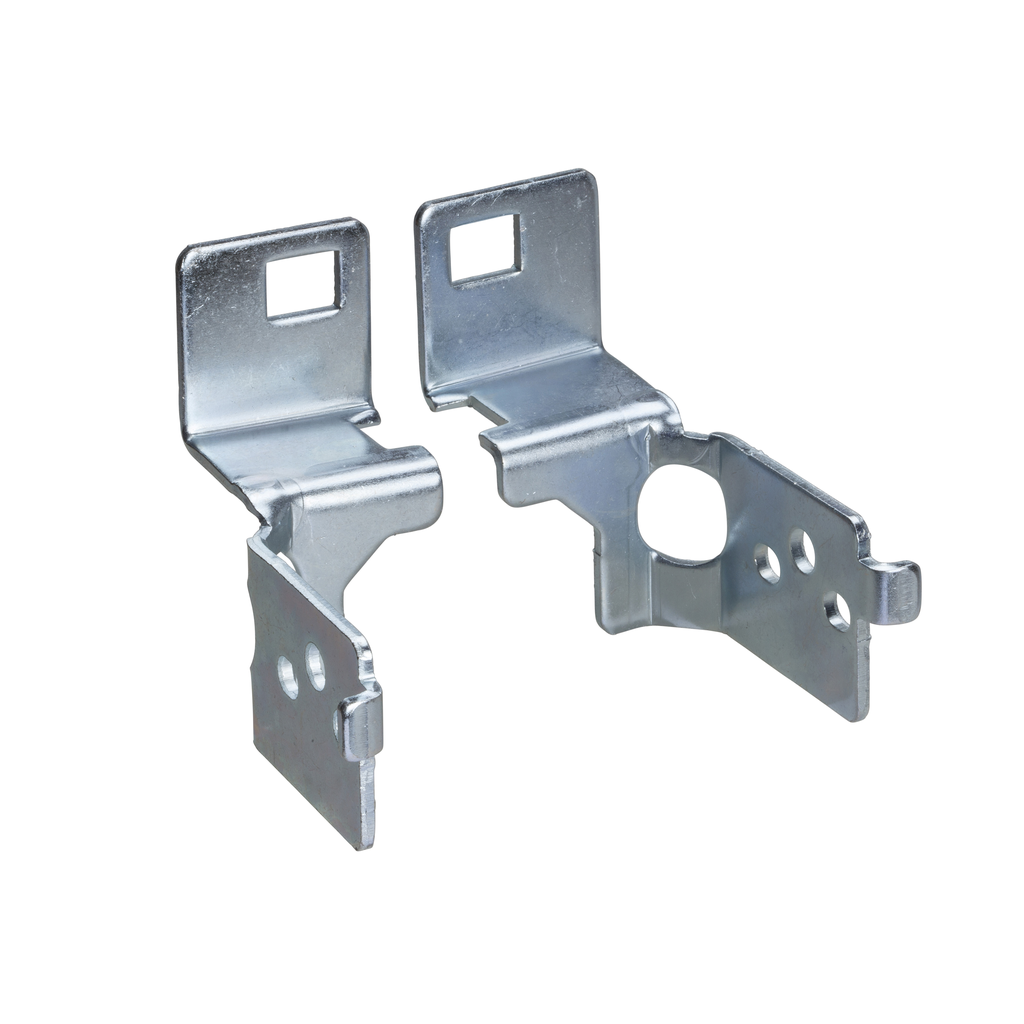

PanelSeT SF mounting plate fixing brackets
Spacial SF mounting plate fixing brackets. . Multi-purpose application. Mounting on structure of enclosure. Permanent permissible load 600kg. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. 4 mounting plate fixing brackets and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Product Destination | for mounting plate |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SF |
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | fixing bracket |
| Device Composition |
|
| Mounting Location | on structure of enclosure |
| Material | steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Adjustment | adjustable in depth every 25 mm |
| Surface Finish | zinc coated |
| Fixing Mode | by fixing element |
| Permanent Permissible Load | 600 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- Spacial SF (assembled supply) and main accessories - Instruction Sheet - 7312750001-14_web (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
