NSYSFC125

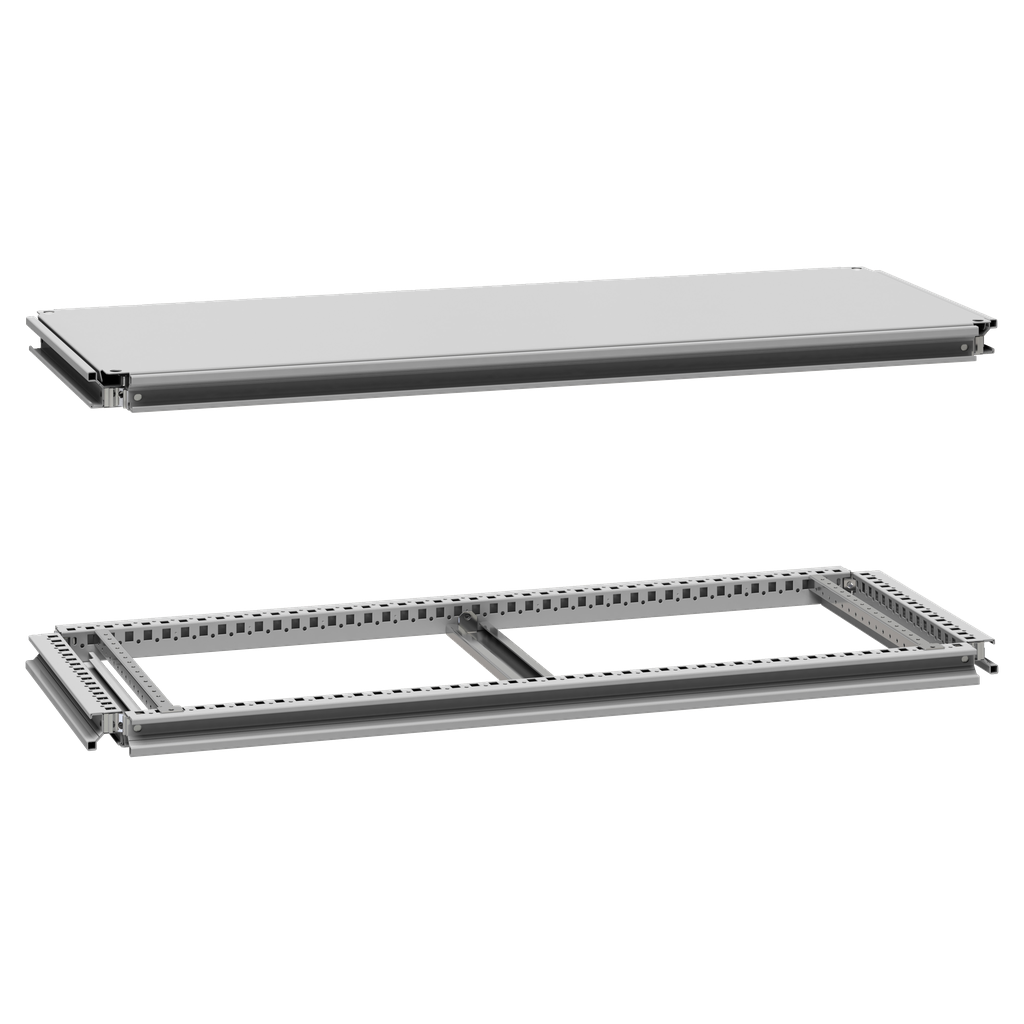

Spacial SF bottom and top frame - 1200x500 mm
Spacial SF bottom and top frame - 1200x500 mm. 1199 x 500 mm. Multi-purpose framework kit. Mounting on bottom and top of vertical uprights. Compatible with rear/side panel and vertical upright. Fixing by screw on each corner of enclosure. Steel made, epoxy-polyester powder finish. Grey RAL 7035.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | framework kit |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location |
|
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Surface Finish | epoxy-polyester powder |
| Depth | 500 mm |
| Fixing Mode | by screws - each corner of enclosure |
| Width | 1200 mm |
| Material | steel |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
