NSYSF20860M

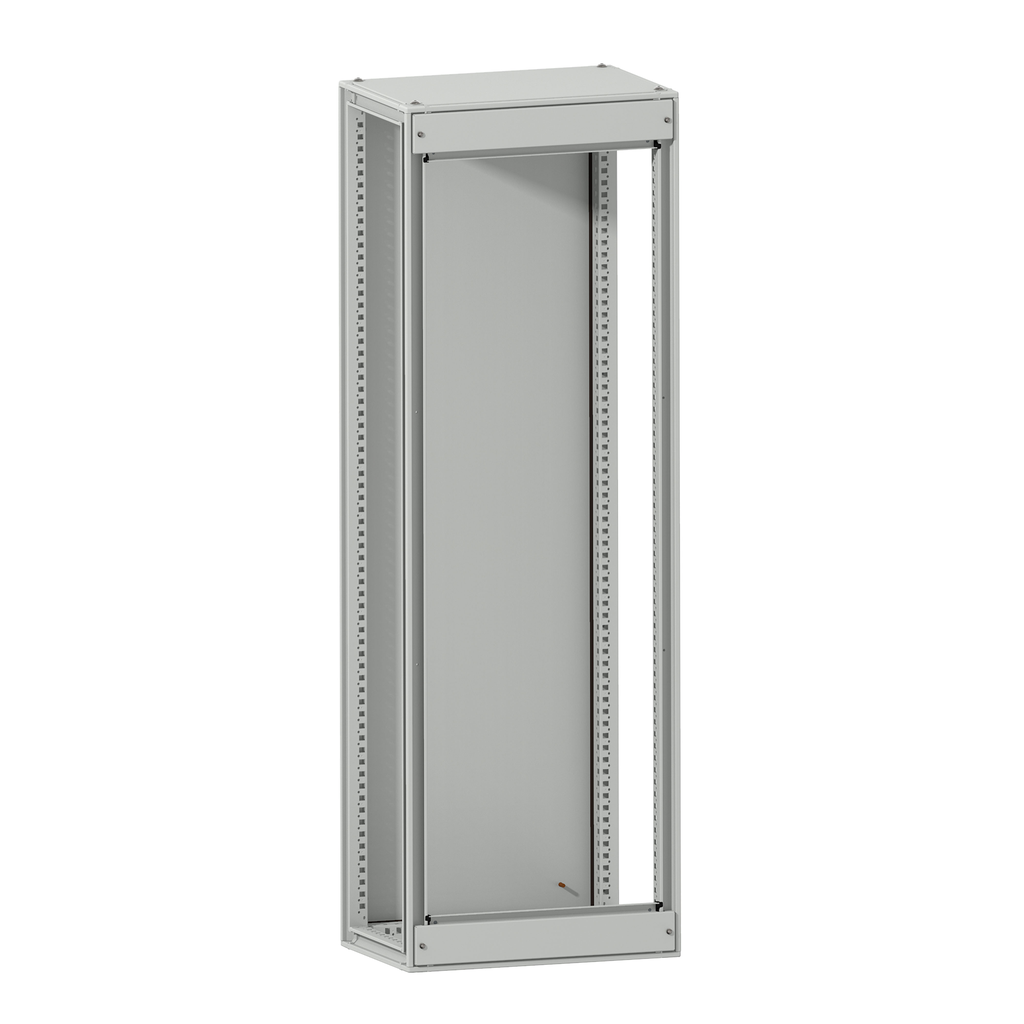

PanelSeT SF compartmentalised enclosure - assembled - 2000x800x600 mm
Spacial SFM compartmentalised enclosure. 2000 x 800 x 600 mm. For insulating the control of a device and reducing the destructive effects of a short-circuit. Assembled. Screw fixed rear panel. Without mounting plate. Galvanised steel for frame and uprights. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards | IEC 62208 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessibility For Operation |
|
| Removable Parts |
|
| Type Of Gland Plate | without gland plate |
| Structure Type |
|
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Mounting Plate Description | without mounting plate |
| Country of Origin | France |
| Width | 800 mm |
| Height | 2000 mm |
| Product Or Component Type | suitable enclosure |
| Product Name | PanelSeT SFM |
| Device Composition |
|
| Enclosure Nominal Height | 2000 mm |
| Range | PanelSeT |
| Enclosure Mounting | floor-standing |
| Product Specific Application |
|
| Enclosure Nominal Depth | 600 mm |
| Device Application | compartmentalised application |
| Enclosure Nominal Width | 800 mm |
