NSYSDT8

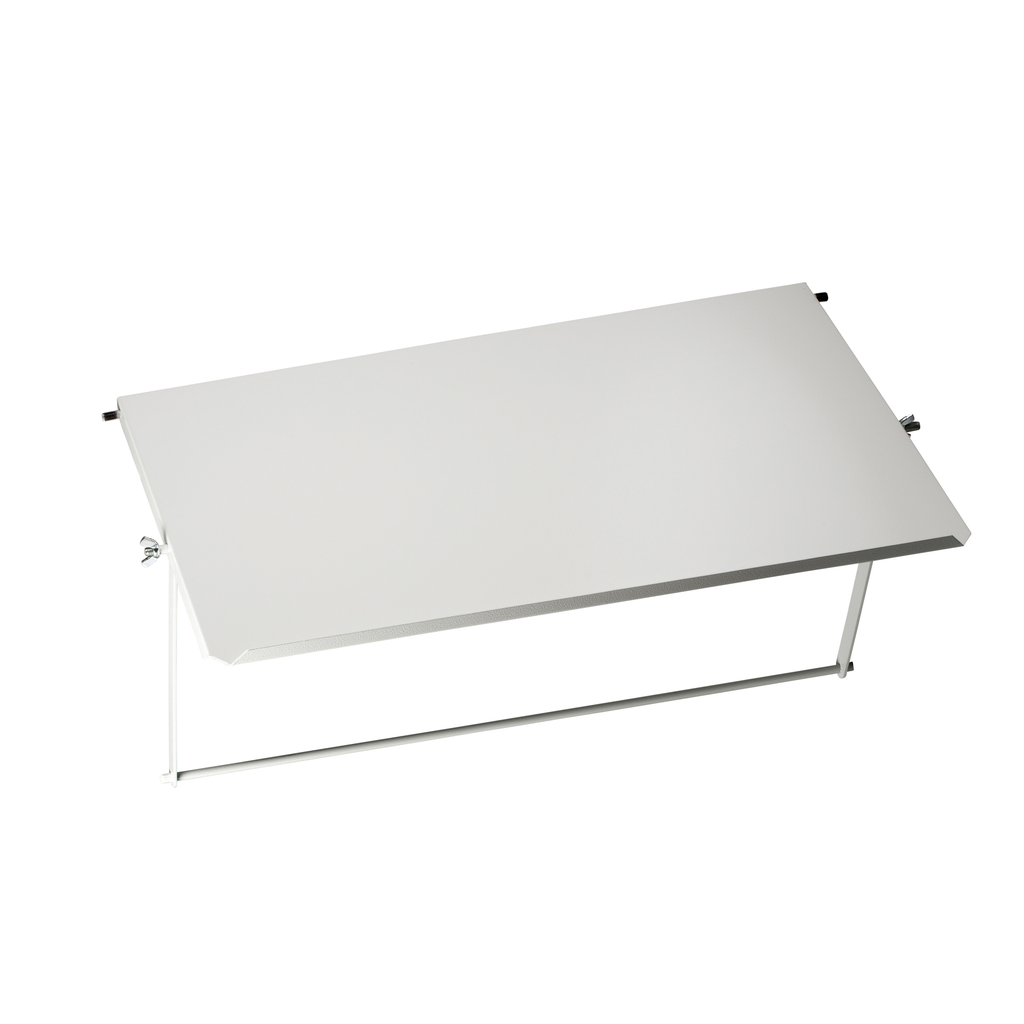

Folding support tray - 800 mm enclosure - 30 kg load
Folding support tray for Spacial enclosures. Enclosure dimensions is W is800 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Mounting Support | direct mounting |
| Range Compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Product Or Component Type | folding support tray |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location |
|
| Quantity Per Set | set of 1 |
| Device Application | door accessories |
| Surface Finish | painted |
| Thickness | 1.5 mm |
| Depth | 350 mm |
| Fixing Mode | direct fixing - door |
| Operating Angle |
|
| Width | nominal: 325 mm |
| Material | door steel |
| Maximum Load | 30 kg |
| Color | door Gray RAL 7035) |
| Adjustment | adjustable in height, steps of 25 mm door |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
