NSYSDR200D
One symmetric mounting rail perforated 35x15 L2000mm, Order by Multiples of 10 units

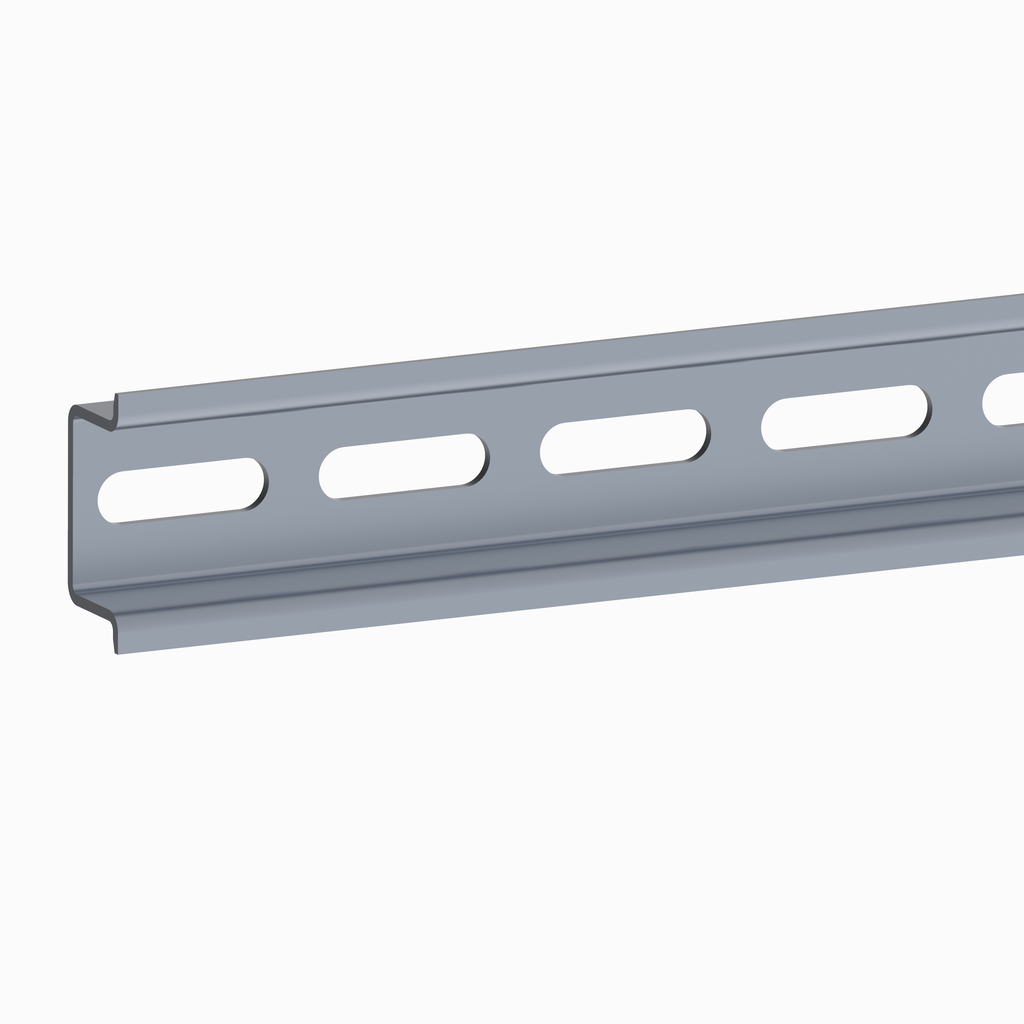

Symmetrical perforated DIN mounting rail type A. This mounting rail is compatible with Thalassa and Spacial ranges. It is made from galvanised steel and is perforated. The dimensions are (W) 35 mm x (H) 15 mm x (L) 2000 mm and the adjustement pitch is 25 mm. The thickness of the galvanised steel is 1.5 mm. The fixing is done by fixing element and with the structure of enclosure location. This product is qualified as a green premium, with minimal use of hazardous substances.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Adjustment |
|
|---|---|
| Surface Finish | perforated |
| Thickness | 1.5 mm |
| Fixing Mode | by fixing element - structure of enclosure |
| Length | 2000 mm |
| Width | nominal: 35 mm |
| Height | nominal: 15 mm |
| Material | galvanised steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | PanelSeT |
| Type Of Rail | symmetrical DIN |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Warranty | 18 months |
