NSYSDR200BD

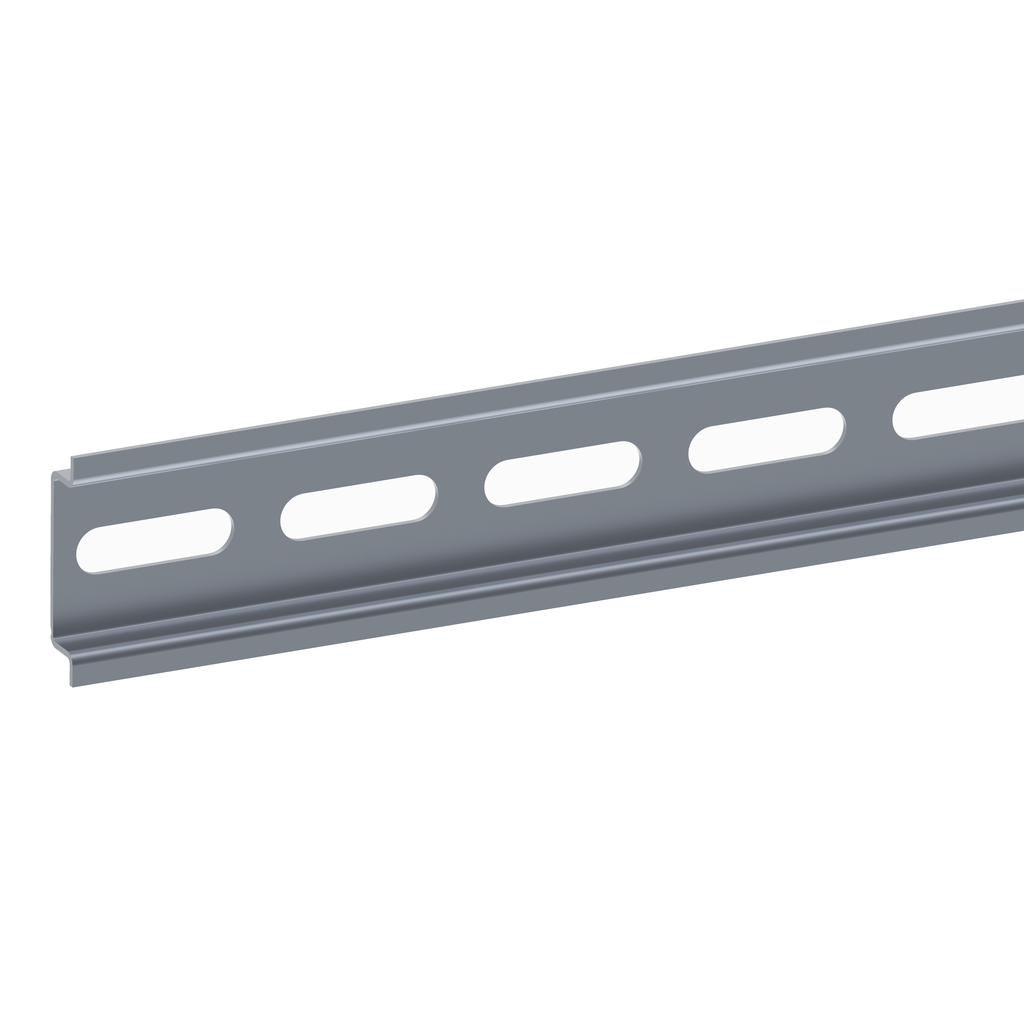

One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Adjustment |
|
| Surface Finish | perforated |
| Thickness | 1 mm |
| Fixing Mode | by fixing element - structure of enclosure |
| Length | 2000 mm |
| Width | nominal: 35 mm |
| Height | nominal: 7.2 mm |
| Material | galvanised steel |
| Country of Origin | Italy |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | rail |
| Device Composition | 1 rail |
| Range | Spacial |
| Type Of Rail | symmetrical DIN |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Device Short Name | TR |
| Warranty | 18 months |
