NSYSDCR6

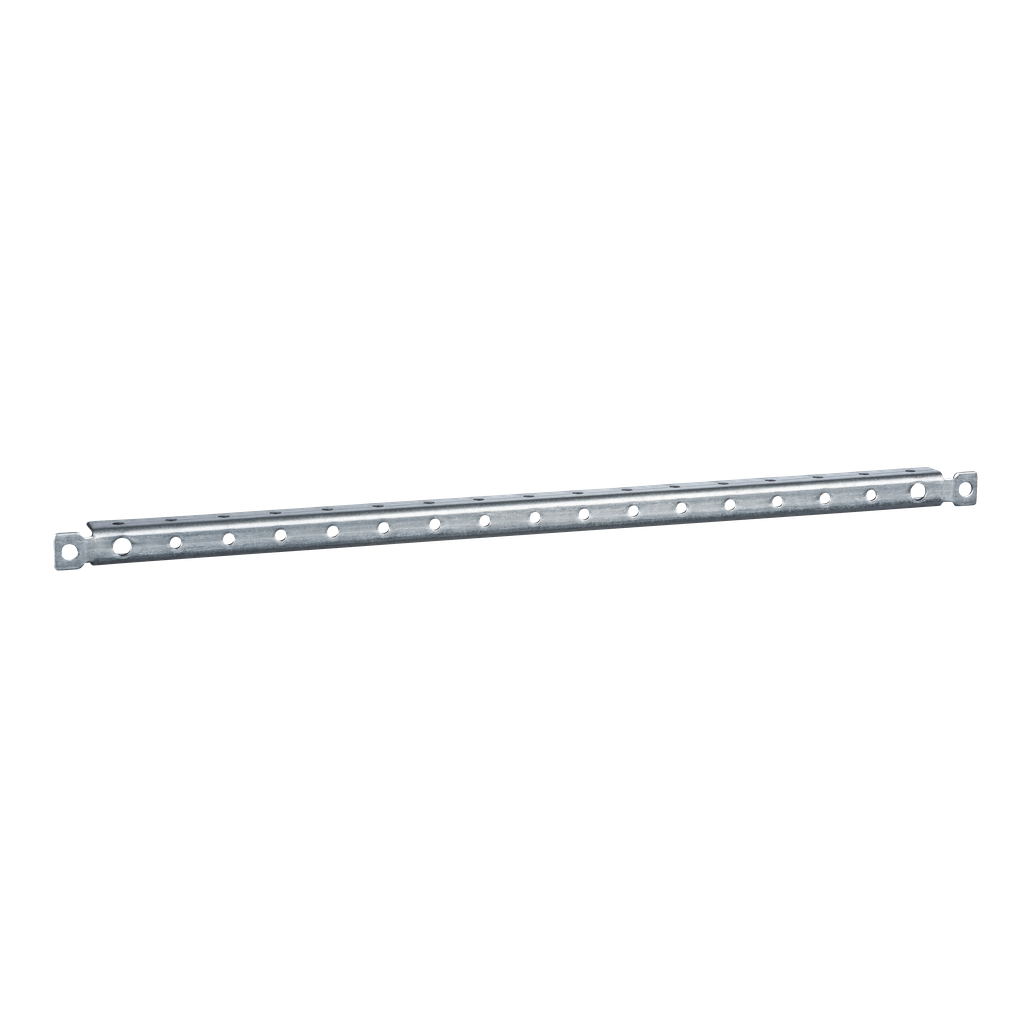

PanelSeT SF/SM door cross rails - nominal width: 600 mm
Specifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Mounting Support | direct mounting |
| Range Compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Product Or Component Type | door cross rail |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | on door reinforcement frame |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Surface Finish | zinc coated |
| Thickness | 2 mm |
| Depth | 18.6 mm |
| Width | nominal: 600 mm |
| Height | nominal: 18 mm |
| Material | body of the rail galvanised steel |
| Adjustment | adjustable in height every 25 mm on door reinforcement frame |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
